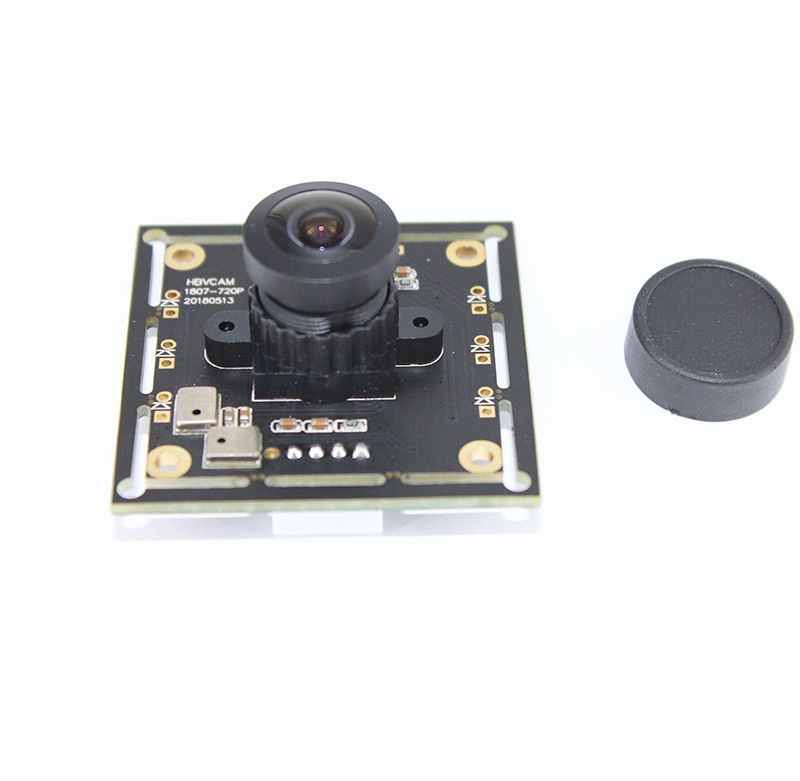

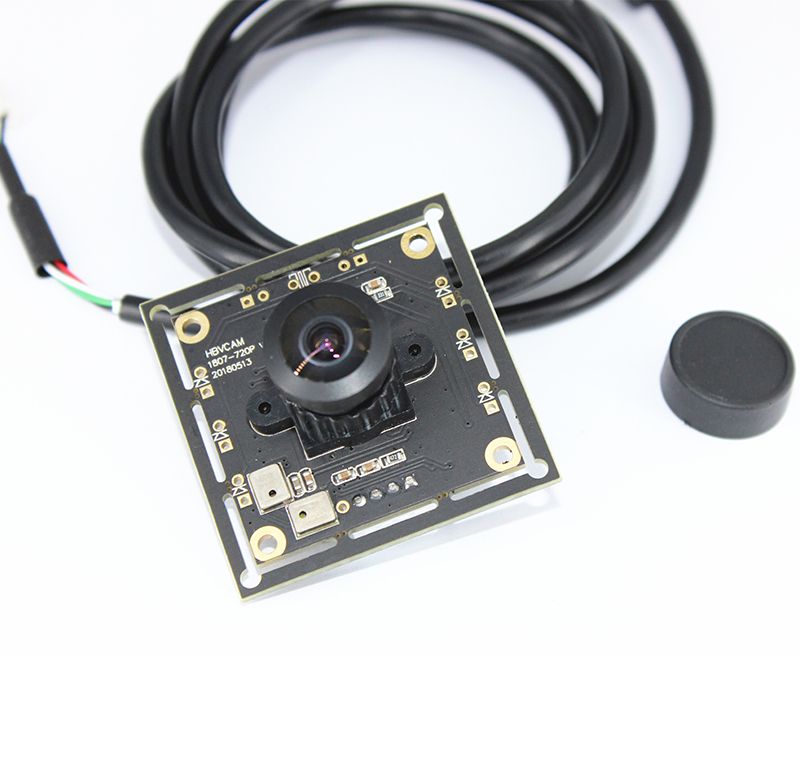

OV9732 1MP 720P HD Camera module with wide fisheye lens

Share

OV9732 1MP 720P HD Camera module with 160 degree wide fisheye lens

Inquire Now Next Product
product details
Model   No.HBVCAM-1807-720P  V11
Model   Size38MM(L)*38MM(W)*19MM(H)
Sensor OV9732
Pixel   Size3um*3um
Image   area3888um*2208um
Optical   Format1/4'' inch
Object   distance30cm-infinity (adjustable)
Interface4PIN USB2.0
DFOV (Diagonal  Field    of  View)150degree
HFOV (Horizontal   Field  of  View)115 degree
VFOV (Vertical Field of  View)70degree
Operating   systemFree driver for  Windows 2000\ Windows XP\Windows 7  /    Linux  and Android system with   Standard UVC Protocol
Video   FormatMJPG
Format output and FPS

640*360（default）30fps

640*480   30fps              800*600  30fps

1280*720  30fps

Automatic   white balance√
Automatic   Exposure√
FocusFixed Focus (the lens is   adjustable)
USB   cable1M for default (Also supply 2M)
