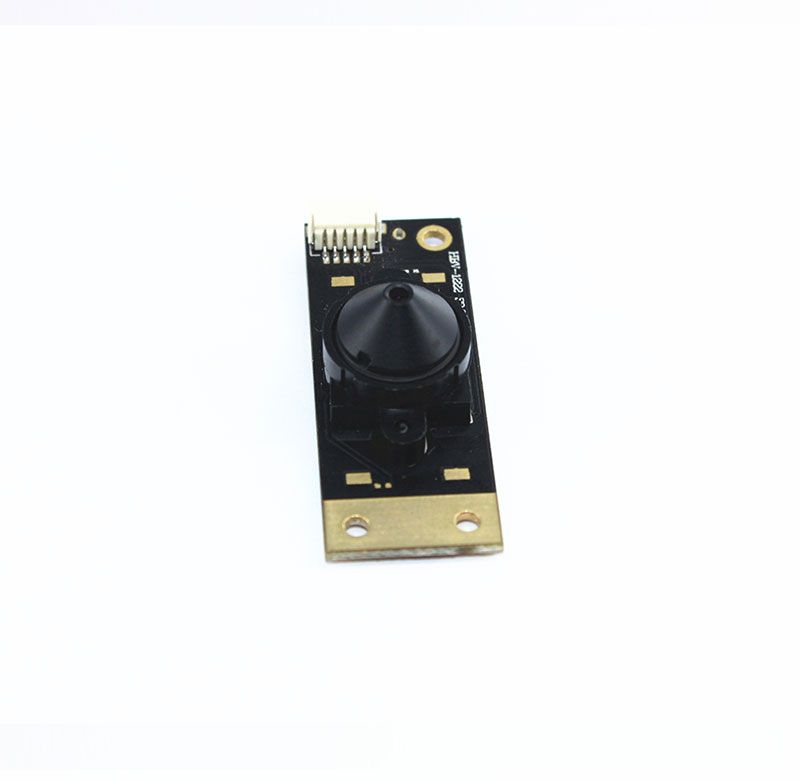

HBV-1222 S1.0

Share
Inquire Now None
product details
HBV-1222 S1.0 Specification datasheet

Model No.HBV-1222 S1.0

Model Size42MM*16MM*14MM

SensorOV9712

Resolution1280*720

Optical Format1/4 inch

Sensitivity3300mV/Lux-sec

S/N Ratio39dB

Dynamic Range69dB

Pixel Size3um*3um

Image Area3888um*2430um

Object distance30-infinity

Interface5PIN USB2.0

DFOV70degree

HFOV58degree

VFOV34degree

Operating systemFree driver for  Windows 2000\ Windows XP\Windows 7  /  Linux  and Android system with Standard UVC Protocol

Video FormatMJPG

Format output and FPS160*120（default）30fps          320*240  30fps         640*480 30fps           320*200  30fps       640*400 30fps               1280*720  30fps

Video FormatYUY2

Format output and FPS160*120（default）30fps         320*240 30fps           640*480 30fps             320*200  30fps           640*400  30fps           1280*720 10fps

Automatic white balance√
Exposure√

FocusFixed Focus

USB cable40CM 1M 2M 3M

1The parameters of  FOV are just for your reference, Different Lens has different FOV

2.The frame rate is related to Light、operating system and so on, the frame rate exist a little error. If  you mind it, please don’t make an order for it. Thank you for your understanding
