1Mega pixel HD ov9732 camera module with 3.6MM lens

Share

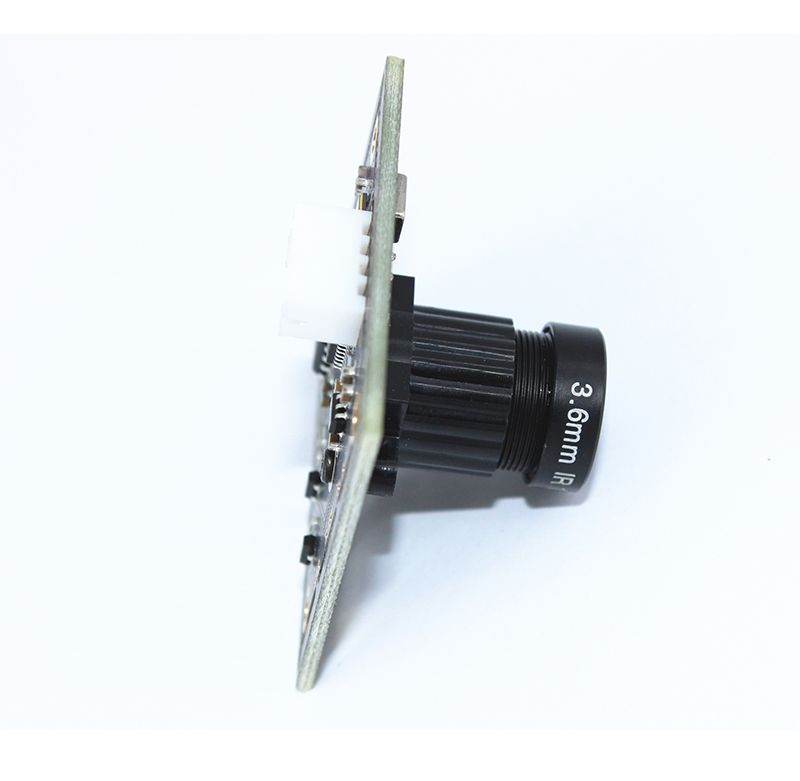

1Mega pixel HD ov9732 camera module with 3.6MM lens

product details
Model   No.HBVCAM-1807-720P  V11
Model   Size38MM(L)*38MM(W)*24MM(H)
Sensor OV9732
Pixel   Size3um*3um
Image   area3888um*2208um
Optical   Format1/4'' inch
Object   distance30cm-infinity (adjustable)
Interface4PIN USB2.0
DFOV                          (Diagonal  Field    of  View)63degree
HFOV                              (Horizontal   Field  of  View)53 degree
VFOV                                             (Vertical Field of  View)31degree
Operating   systemFree driver for  Windows 2000\ Windows XP\Windows 7  /    Linux  and Android system with   Standard UVC Protocol
Video   FormatMJPG
Format output and FPS

640*360(default)30fps

640*480   30fps              800*600  30fps

1280*720  30fps

Automatic   white balance
Automatic   Exposure
FocusFixed Focus (the lens is   adjustable)
USB   cable1M for default (Also supply 2M)
