Home >> Products >> USB3.0 Camera Module

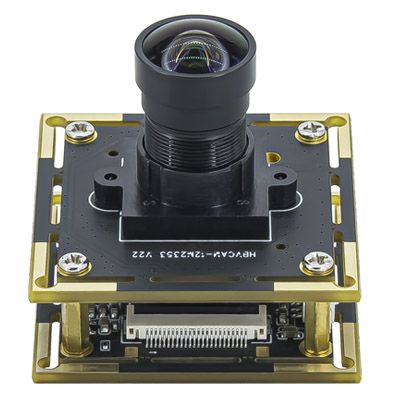

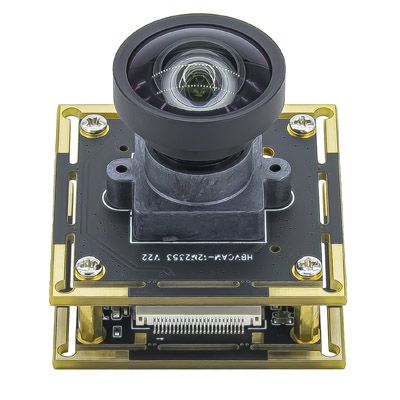

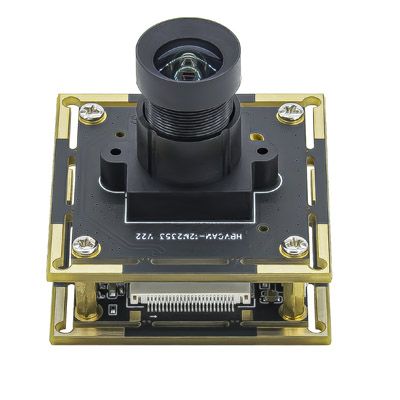

1. 12MP 4K USB Camera
2. Product chip: IMX577 (1/2.3)
3. Maximum resolution, format, frame rate:
4000 * 3000 MJPG 28FPS 3840 * 2160 60FPS (4K resolution)
4. Built in dual digital microphone
5. Product Size:38*38*37.5±0.5MM
Key Specifications :
Module No. | HBVCAM 2504U3 V22 |
Module Size | 38x38x37.5±0.5MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 3.1 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | / |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | IMX577 (1/2.3 ) |
Seneor Package | / |
Maximum resolution | 4000*3000 |
Sensitivity | / |
Pixel Size | 1.55*1.55 μm
|
Maximum Image Transfer Rate | MJPG 4000x3000 28FPS / YUY2 4000x3000 10FPS MJPG 3840x2160 60FPS / YUY2 3840x2160 15FPS MJPG 3264x2448 28FPS / YUY2 3264x2448 15FPS MJPG 2592x1944 30FPS / YUY2 2592x1944 25FPS MJPG 2560x1440 60FPS / YUY2 2560x1440 30FPS MJPG 2048x1536 60FPS / YUY2 2048x1536 30FPS MJPG 1600x1200 60FPS / YUY2 1600x1200 60FPS MJPG 1920x1080 60FPS / YUY2 1920x1080 60FPS MJPG 1280x960 60FPS / YUY2 1280x960 60FPS MJPG 1280x720 60FPS / YUY2 1280x720 60FPS MJPG 640x480 60FPS / YUY2 640x480 60FPS
|
S/N Ratio | / |
Max Dynamic Range | / |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | Support |
Lens Construction | 7E |
F/No | 1.8 |
EFL | 2.2 mm |
FOV | D=127° |
TV Distortion | ＜-4.96% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |
Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
