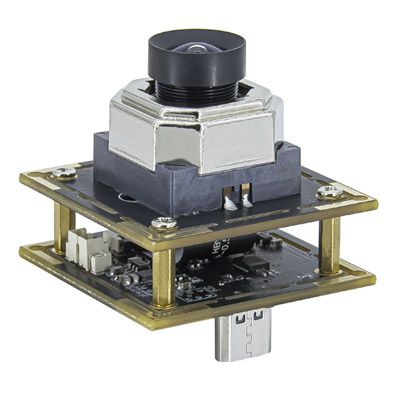

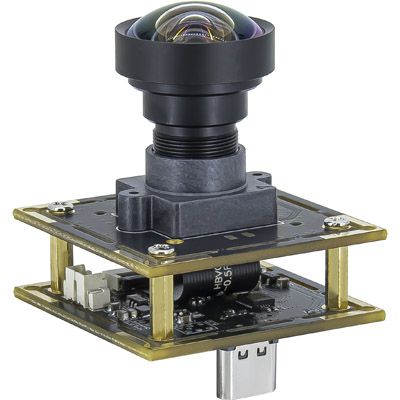

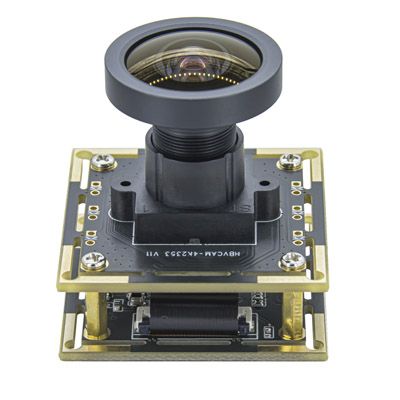

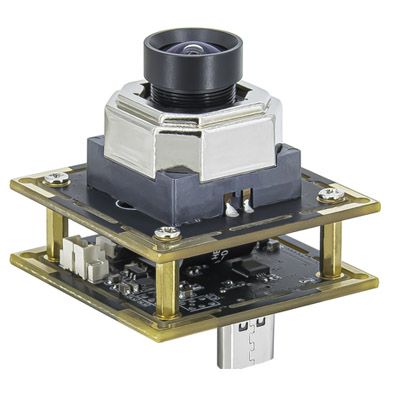

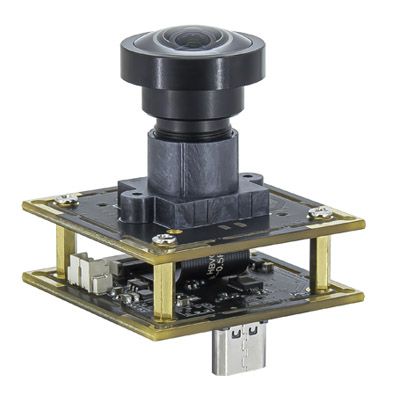

1. USB3.0 8MP Camera Module
2. Product chip: IMX678 (1/1.8)
3. Maximum resolution, format, and frame rate: 3840*2160 MJPG 60FPS
4. Built-in dual digital microphones
5. Product Size:38*38*41.8±0.5MM
Key Specifications:
Module No. | HBVCAM 2504U3 V22 |
Module Size | 38x38x41.8±0.5MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 3.1 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | / |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | IMX678 (1/1.8 ) |
Seneor Package | / |
Maximum resolution | 3840*2160 |
Sensitivity | / |
Pixel Size | 2.0*2.0 μm
|
Maximum Image Transfer Rate | YUY2 3840x2160 15FPS / MJPG 3840x2160 60FPS YUY2 2592x1944 30FPS / MJPG 2592x1944 60FPS YUY2 2560x1440 30FPS / MJPG 2560x1440 60FPS YUY2 2048x1536 30FPS / MJPG 2048x1536 60FPS YUY2 1920x1080 60FPS / MJPG 1920x1080 60FPS YUY2 1600x1200 60FPS / MJPG 1600x1200 60FPS YUY2 1280x960 60FPS / MJPG 1280x960 60FPS YUY2 1280x720 60FPS / MJPG 1280x720 60FPS YUY2 640x480 60FPS / MJPG 640x480 60FPS
|
S/N Ratio | / |
Max Dynamic Range | / |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | Support |
Lens Construction | 5G+3P |
F/No | 1.6 |
EFL | 2.96 mm |
FOV | D=182° |
TV Distortion | ＜-4.6% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |

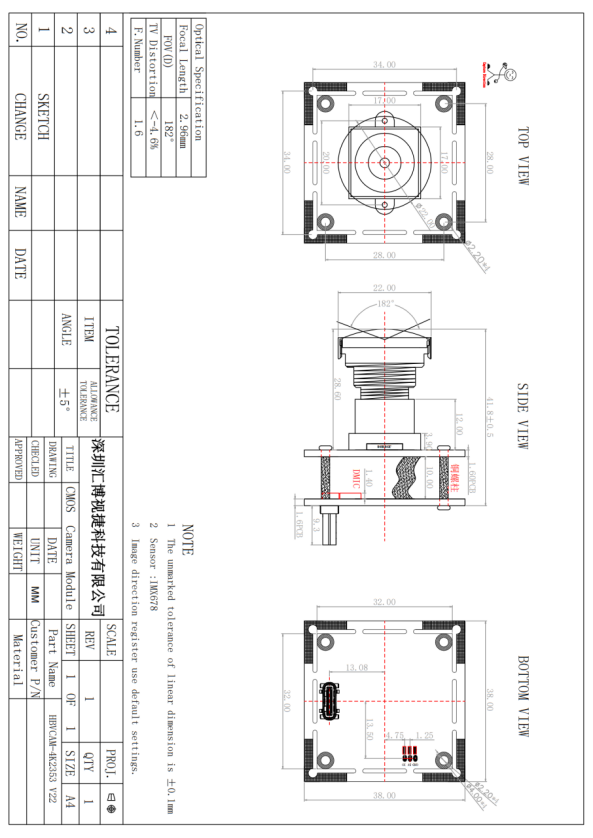

Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
