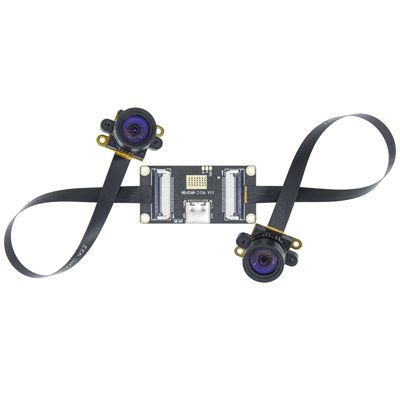

1. 1MP Dual lens global shutter camera module
2.PCB:40*20MM
FPC：150*22*15.15±0.5MM
3. Dual camera spacing baseline: variable baseline
4. Product chip: OV9281X2 (1/4 '')
5. Maximum resolution, format, frame rate: 2560*800 MJPG 120FPS
6. Maximum viewing angle:95 ° without distortion
7. Sample Cable: Type-C-50CM
Key Specifications:
Module No. | HBVCAM-2436 V11 |
Module Size | Refer to the module mechanical dimension |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 500LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 950 mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | OV9281 (1/4 ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 2560*800 |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | MJPG 2560x800 120FPS / YUY2 2560x800 5FPS MJPG 2560x720 120FPS / YUY2 2560x720 5FPS MJPG 1600x600 120FPS / YUY2 1600x600 10FPS MJPG 1280x800 120FPS / YUY2 1280x800 10FPS MJPG 1280x792 120FPS / YUY2 1280x792 10FPS MJPG 1280x720 120FPS / YUY2 1280x720 10FPS MJPG 1280x712 120FPS / YUY2 1280x712 10FPS MJPG 1280x480 120FPS / YUY2 1280x480 15FPS MJPG 1280x400 120FPS / YUY2 1280x400 15FPS MJPG 800x600 120FPS / YUY2 800x600 15FPS MJPG 800x592 120FPS / YUY2 800x592 15FPS MJPG 640x480 120FPS / YUY2 640x480 25FPS MJPG 640x472 120FPS / YUY2 640x472 25FPS MJPG 640x400 120FPS / YUY2 640x400 25FPS
|
Shutter type | Global shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | No |
Lens Construction | 2G+2P |
F/No | 2.2 |
EFL | 2.1mm |
FOV | D=100° |
TV Distortion | -4% |
Image Colror | Monochrome pictu |
Certifications | FCC/CE/ROSH |
Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
