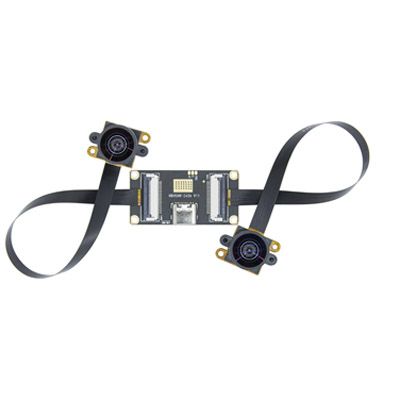

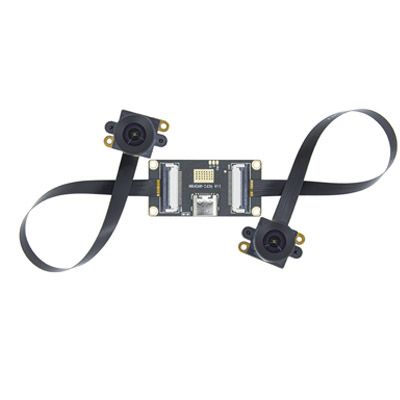

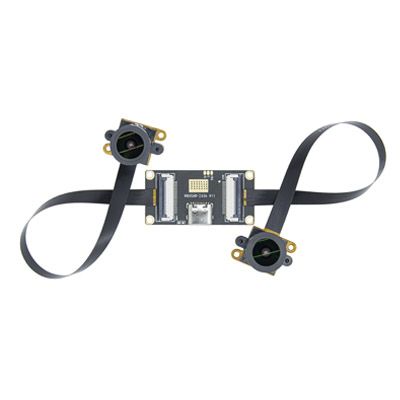

1.1MP high-definition color image120fps, embedded dual lens global shuttercamera module,
2.PCBPCB:40*20MM
FPC：150*22*16.6±0.5MM
3. Dual camera spacing baseline: variable baseline
4. Product chip: OV9750(1/3'')
5. Maximum resolution, format, frame rate: 2560*800 MJPG 120FPS
6. Maximum viewing angle:81 ° without distortion
7. Sample Cable: Type-C-50CM
Key Specifications:
Module No. | HBVCAM-2436 V11 |
Module Size | Refer to the module mechanical dimension |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 500LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 950 mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | OV9750 (1/3 ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 2560*960 |
Sensitivity | 3600mV/Lux-sec |
Pixel Size | 3.75µm x 3.75µm |
Maximum Image Transfer Rate | MJPG 2560x960 60FPS / YUY2 2560x960 2FPS MJPG 2560x800 60FPS / YUY2 2560x800 2FPS MJPG 2560x720 60FPS / YUY2 2560x720 2FPS MJPG 1600x600 60FPS / YUY2 1600x600 10FPS MJPG 1280x960 60FPS / YUY2 1280x960 5FPS MJPG 1280x952 60FPS / YUY2 1280x952 5FPS MJPG 1280x800 60FPS / YUY2 1280x800 5FPS MJPG 1280x796 60FPS / YUY2 1280x796 5FPS MJPG 1280x720 60FPS / YUY2 1280x720 10FPS MJPG 1280x712 60FPS / YUY2 1280x712 10FPS
|
S/N Ratio | 43.1 dB |
Max Dynamic Range | 73.4 dB@8x gain |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | No |
Lens Construction | / |
F/No | 3.03 |
EFL | 4mm |
FOV | D=81° |
TV Distortion | ＜5% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |

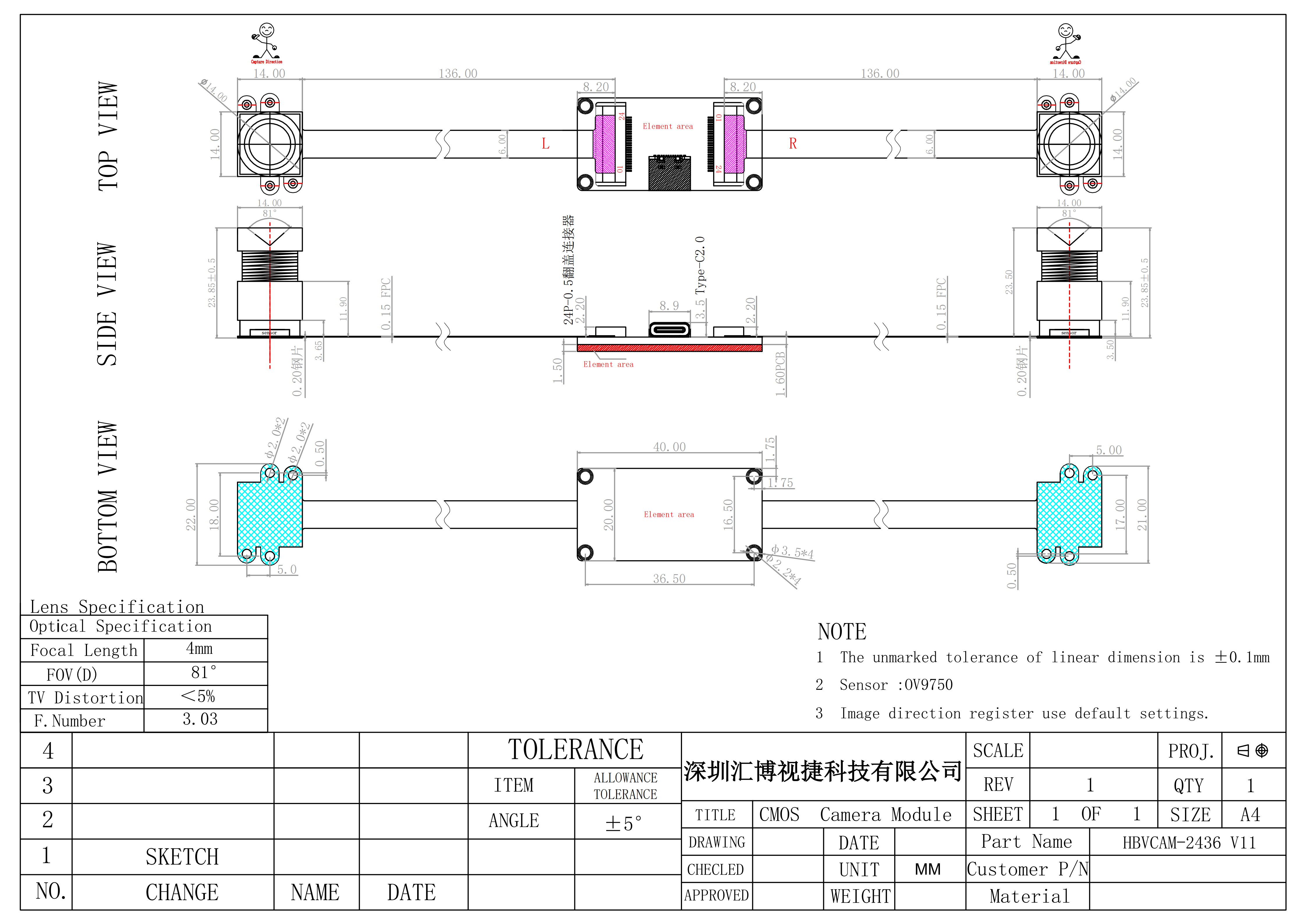

Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
