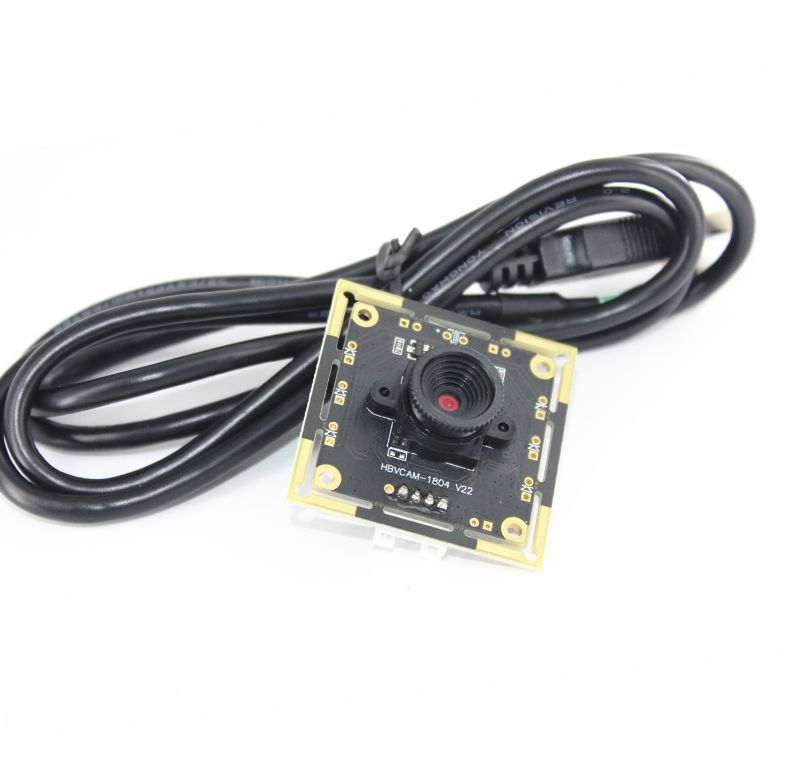

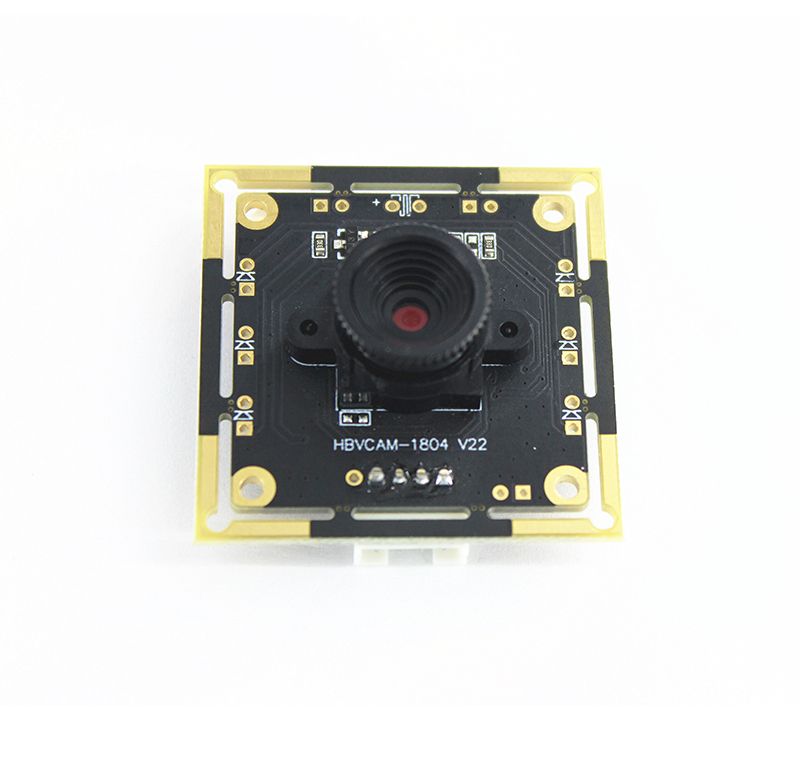

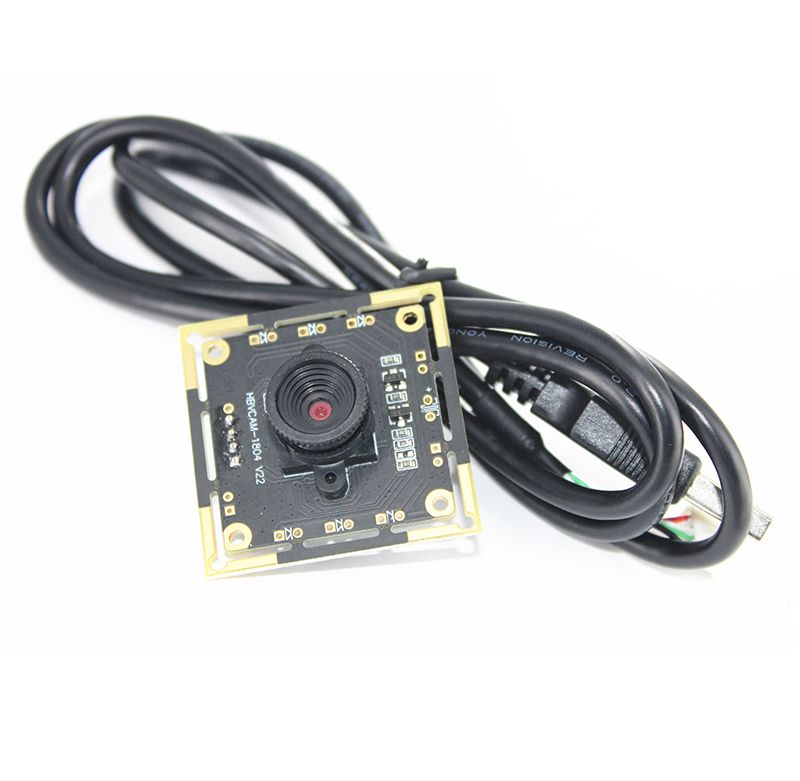

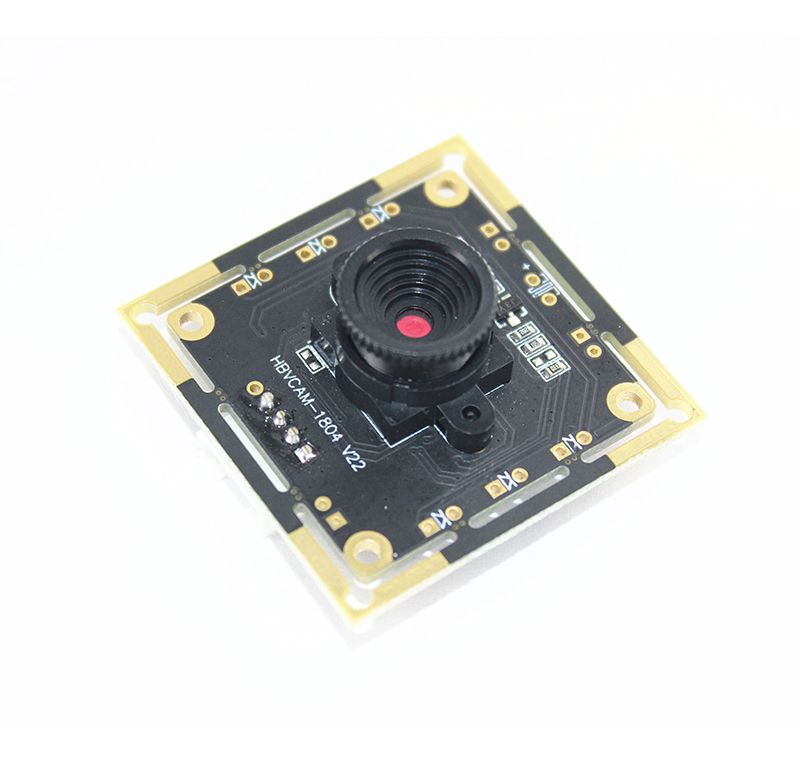

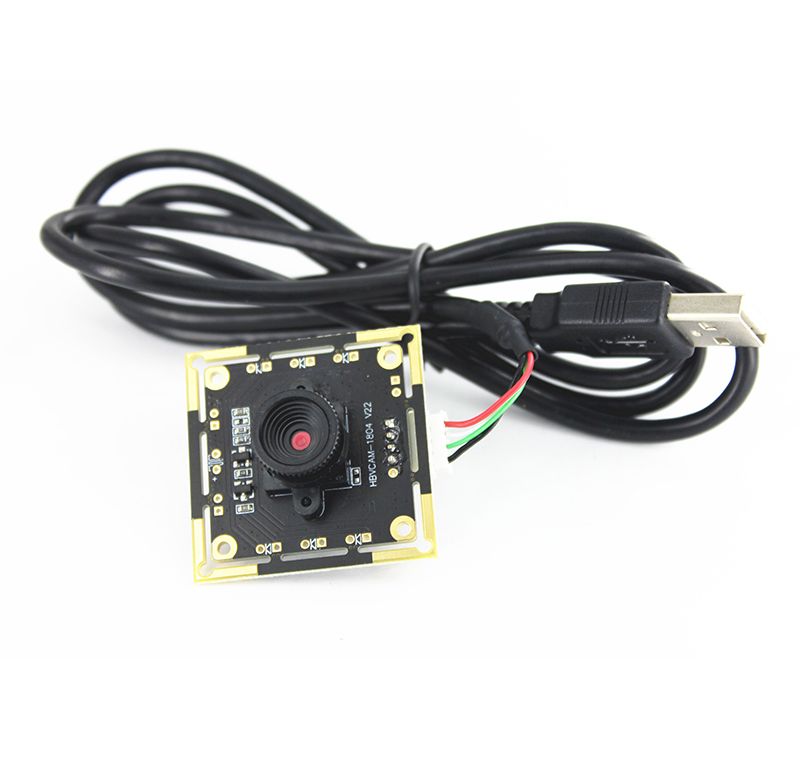

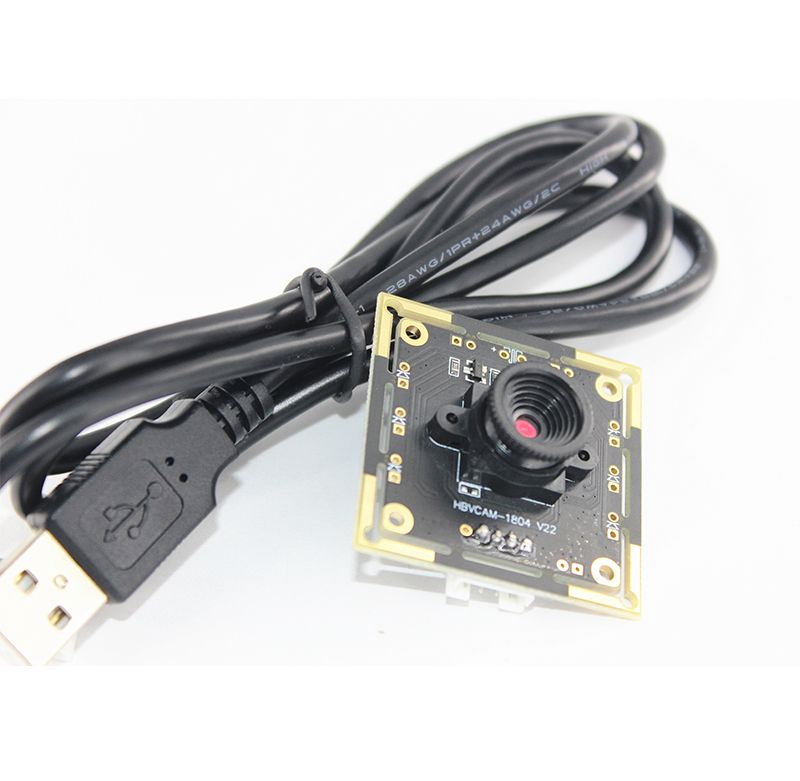

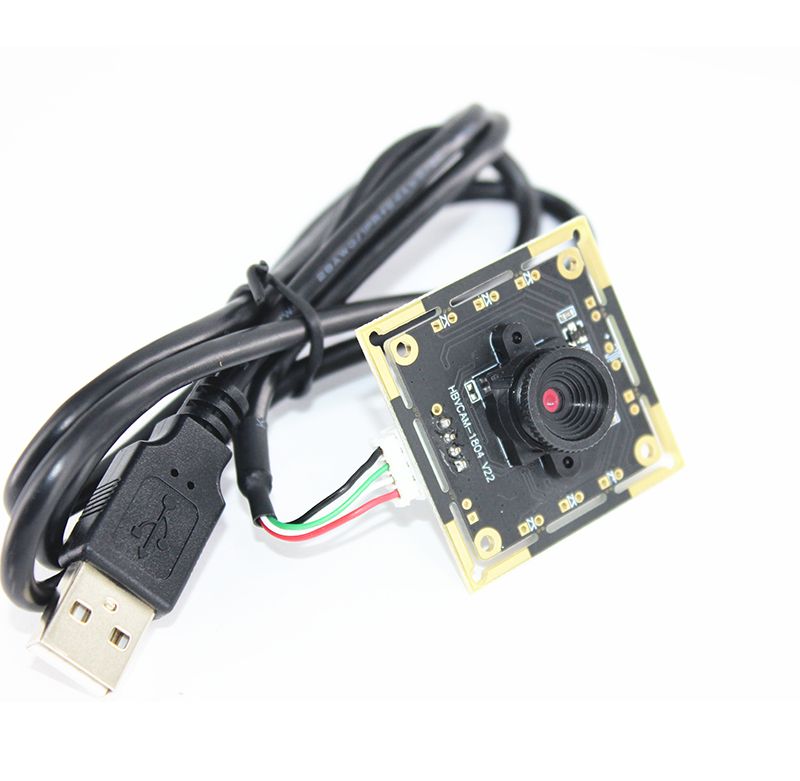

0.3Megapixel HD PC Camera module with free driver

Share
Inquire Now Next Product
product details
Model   No.HBVCAM-1804 V22
Model SizePCB:38mm   × 38mm ×13MM
Sensor BF3005
Resolution640*480
Optical Format1/4''inch
Pixel Size6.0um*6.0um
Active pixel array640*480
Sensitivity10V/lux-sec
SNR MAX 45   dB
Max Dynamic range65   dB
Operating  temperature–40°C   to +85°C ambient
Object distance30-infinity
Interface4PIN   USB2.0
DFOV67degree
HFOV54degree
VFOV41degree
Operating systemFree   driver for  Windows 2000\ Windows   XP\Windows 7  /  Linux    and Android system with Standard UVC Protocol
Video FormatMJPG
Format output and FPS

1280*720(default)    30fps

160*120    30fps          176*144    30fps

320*240    30fps          352*288    30fps

640*480    30fps          1280*960  1fps

800*600    30fps

Video FormatYUY2
Format output and FPS

1280*720(default)    30fps

160*120    30fps          176*144        30fps

320*240    30fps          352*288        30fps

640*480    30fps          1280*960      1fps

800*600    30fps

Exposure√
Automatic white balance√
FocusFixed   Focus (lens is adjustable)
USB cable40CM   1M 2M 3M
