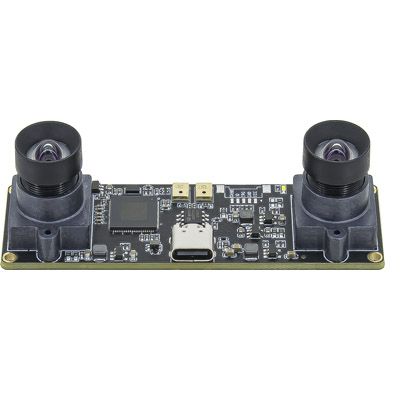

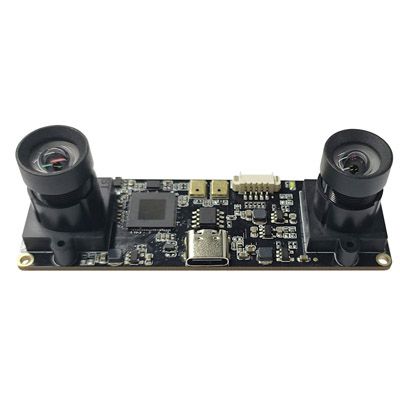

1. 2MP binocular synchronized global exposure camera
2. Product chip: AR0234 (1/2.6 '')
3. Maximum resolution, format, frame rate: 3840 * 1200 MJPG 50FPS
4. Maximum operating current value: 260mA Power: 1300mW

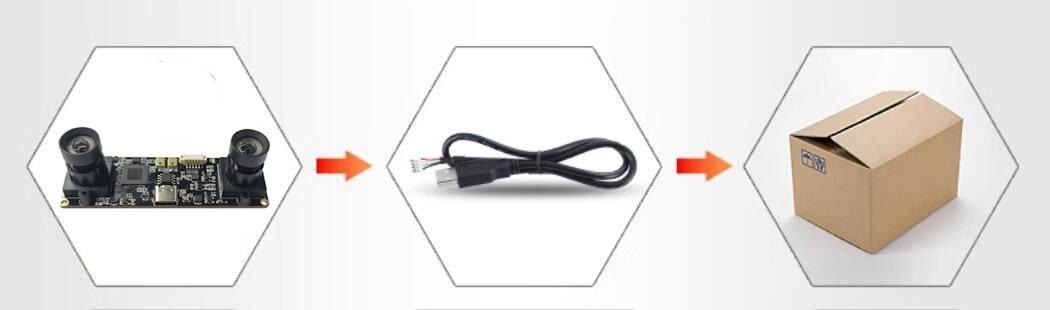

5. Sample testing line Type-C-50CM
6. Product Size： 80*25*19.5±0.5MM
Key Specifications:
Module No. | HBVCAM-F2439GS-2 V11 |
Module Size | 80x25x19.5±0.5MM |
Temperature (Operation) | -10℃ to 60℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 500LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 1300mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | AR0234 (1/2.6) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 3840*1200 |
Pixel Size | 3.0µm x 3.0µm |
Maximum Image Transfer Rate | YUY2 3840x1200 2FPS / MJPG 3840x1200 50FPS YUY2 3840x1080 2FPS / MJPG 3840x1080 60FPS YUY2 2560x720 5FPS / MJPG 2560x720 60FPS YUY2 1920x1200 5FPS / MJPG 1920x1200 60FPS YUY2 1920x1192 5FPS / MJPG 1920x1192 60FPS YUY2 1920x1080 5FPS / MJGP 1920x1080 60FPS YUY2 1920x1072 5FPS / MJPG 1920x1072 60FPS YUY2 1280x720 10FPS / MJPG 1280x720 60FPS YUY2 1280x712 10FPS / MJPG 1280x712 60FPS YUY2 1280x480 10FPS / MJPG 1280x480 60FPS YUY2 640x480 30FPS / MJPG 640x480 60FPS YUY2 640x472 30FPS / MJPG 640x472 60FPS |
S/N Ratio | 38 db |
Max Dynamic Range | 71.4 db |
Shutter type | Global shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | Support |
Lens Construction | 2G+2P |
F/No | 2.4 |
EFL | 4.2 mm |
FOV | D=100° |
TV Distortion | -0.1% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |
Module Mechanical Dimension:
1.Are you factory or trade company?

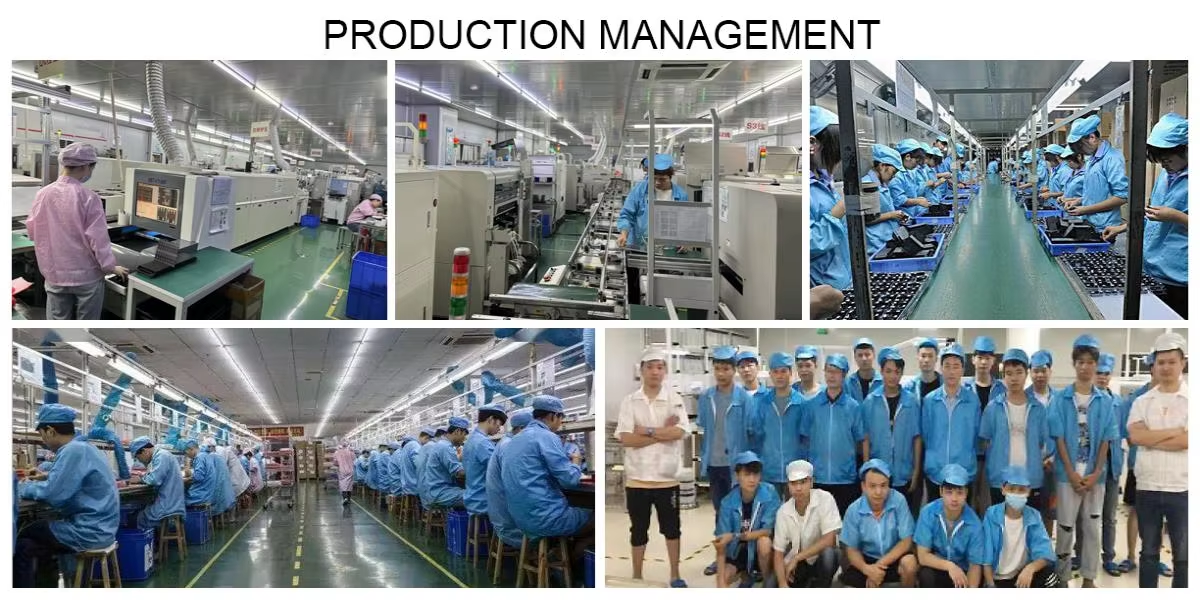

A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
