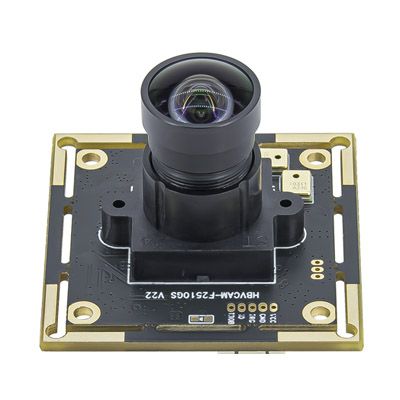

1. 2MP Full Color Global Shutter Camera Module
2. Product size: 38*38*24.5±0.5MM
3. Product chip: AR0234(1/2.6'')
4. Maximum resolution, format, and frame rate: 1920*1200 MJPG 90FPS
5. Maximum viewing angle: 92 °
6. Built in dual digital microphone

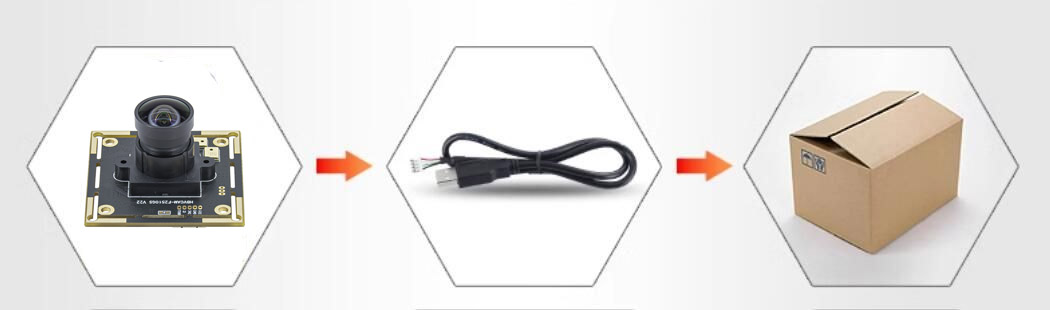

7. Sample matching test line 4P-2.0MM-50CM
Key Specifications :
Module No. | HBVCAM-F2510GS V22 |
Module Size | 38x38x24.5±0.5MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 1050mW
|
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | AR0234 (1/2.6 ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1920*1200 |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | MJPG 1920x1200 90FPS / YUY2 1920x1200 5FPS MJPG 1920x1080 90FPS / YUY2 1920x1080 5FPS MJPG 1600x1200 90FPS / YUY2 1600x1200 5FPS MJPG 1280x1024 90FPS / YUY2 1280x1024 5FPS MJPG 1280x960 90FPS / YUY2 1280x960 5FPS MJPG 1280x720 120FPS / YUY2 1280x720 10FPS MJPG 1024x1024 90FPS / YUY2 1024x1024 5FPS MJPG 1024x768 90FPS / YUY2 1024x768 10FPS MJPG 960x720 120FPS / YUY2 960x720 15FPS MJPG 800x600 120FPS / YUY2 800x600 20FPS MJPG 640x480 120FPS / YUY2 640x480 30FPS MJPG 320x240 120FPS / YUY2 320x240 120FPS
|
S/N Ratio | 38 dB |
Max Dynamic Range | 71.4 dB |
Shutter type | Global shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | Support |
Lens Construction | 4G+2P |
F/No | 2.6 |
EFL | 3.25mm |
FOV | D=92° |
TV Distortion | ＜-1% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |

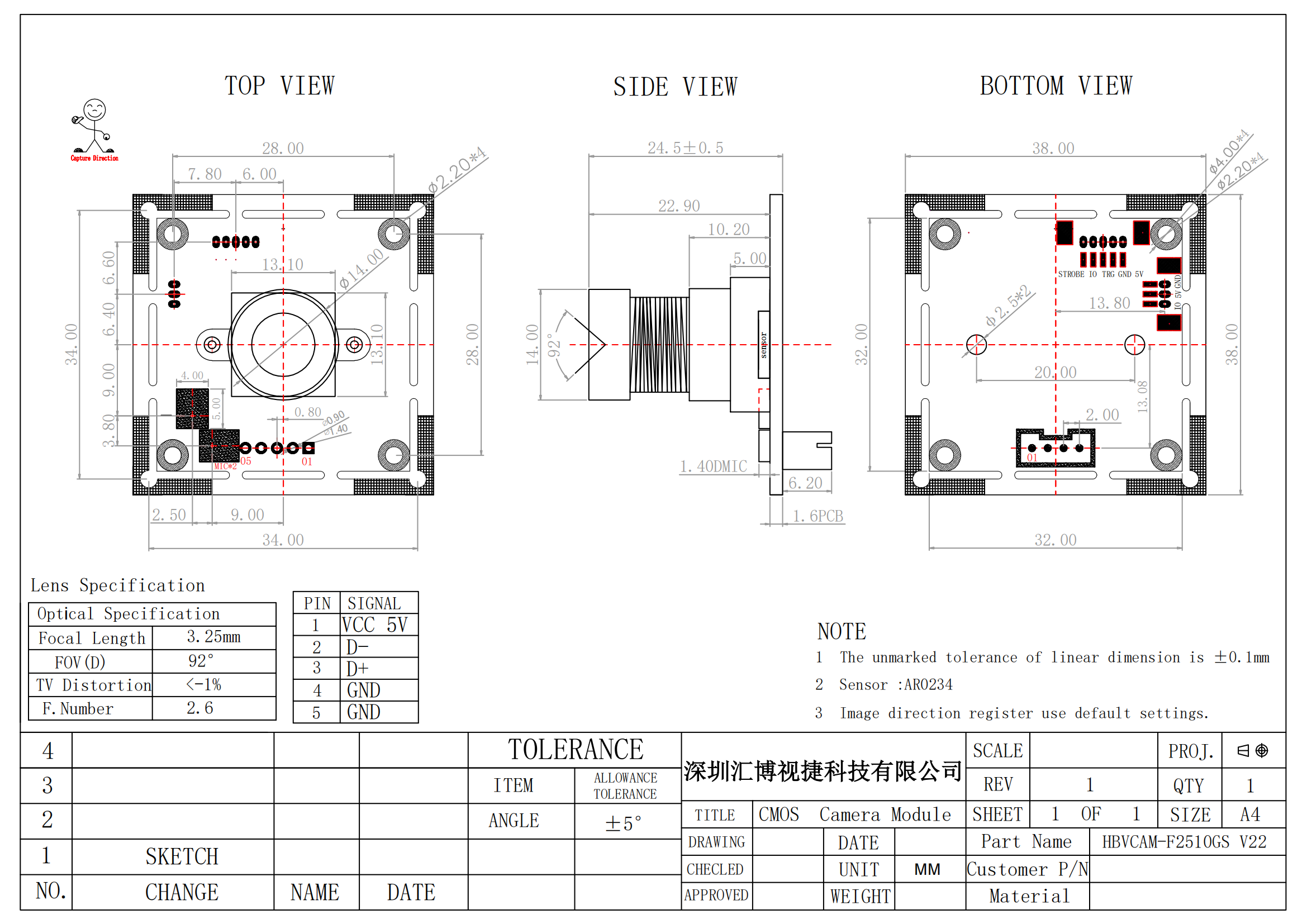

Module Mechanical Dimension:
Q1.Are you factory or trade company?

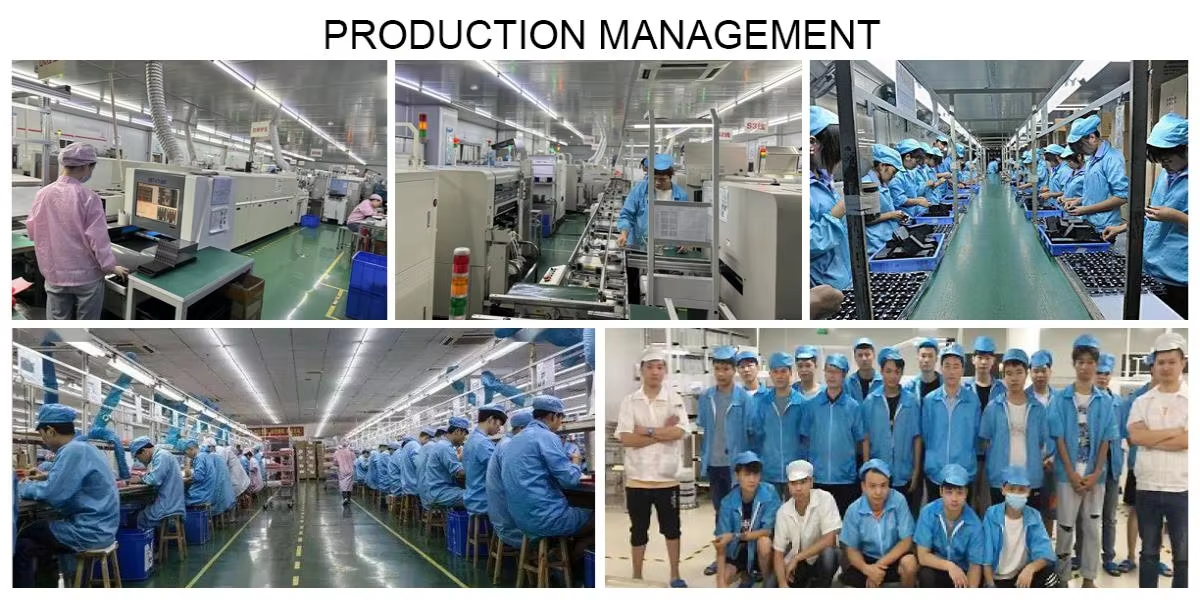

A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
