New Arrive 2 Mega Pixel High Definition Wide Dynamic Range 0230(1/2.7'') Cmos Sensor CMOS Camera Module

Inquire Now Next Product
product details

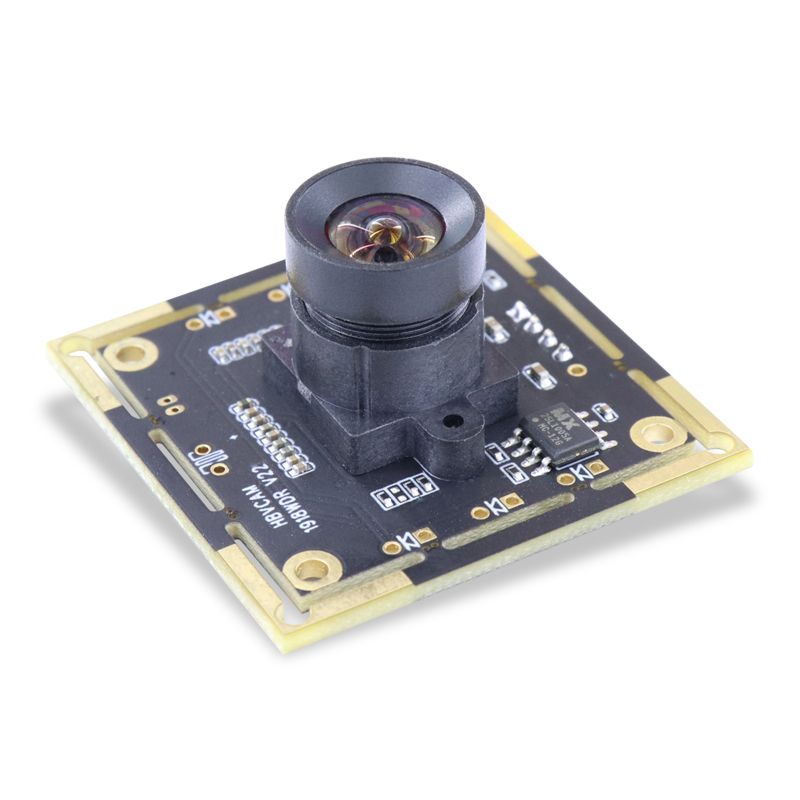

Module No.
HBVCAM-1918WDR V22
Module Size
38mm × 38mm × 17.95mm±0.5MM
Temperature (Operation)
-20°C to 70°C
Temperature (Stable Image)
0°C to 50°C
Assembly technique
SMT (ROSH)
Focus
Fixed
Object distance
30CM-infinity
Resolution
600LW/PH (Center)
PCB printing ink
black
interface
USB 2.0
Power suuply
USB bus power
supply voltage
DC 5V±5%
Maximum Power consumption
940mW
Operating system request
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
Sensor
AR0230 (1/2.7” )
Seneor Package
CSP,Bare Die
Maximum resolution
1920*1080
Sensitivity
4.0V /（lux-sec）
Pixel Size
3.0µm x 3.0µm
FOV
100°
Certifications
FCC/CE/ROSH

New Arrive 2 Mega Pixel High Definition Wide Dynamic Range 0230(1/2.7'') Cmos Sensor CMOS Camera Module
