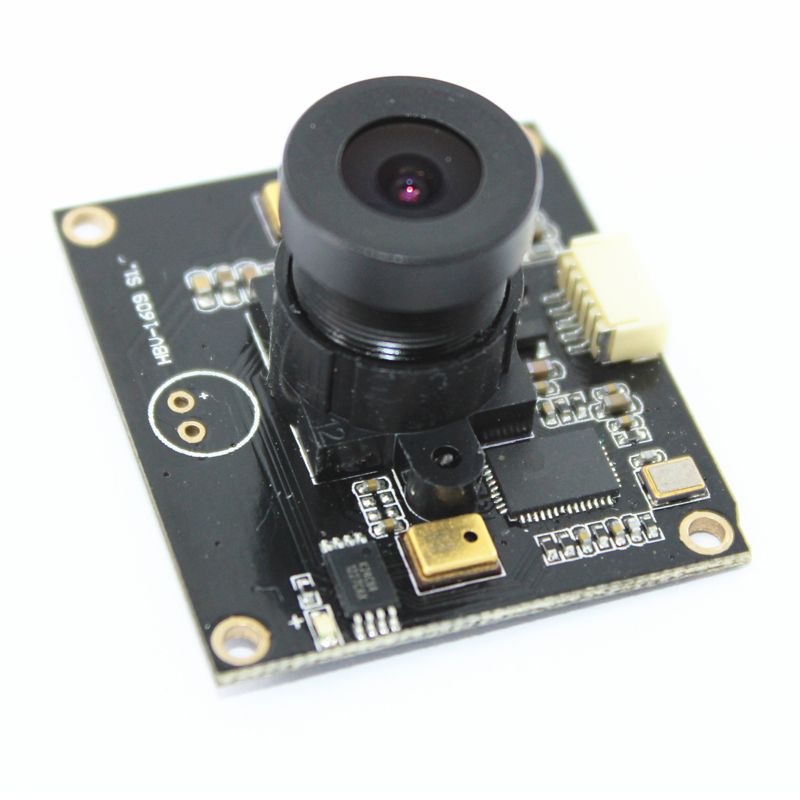

Free driver USB2.0 OV2643 android mini camera module built in microphone

Share

Free driver USB2.0 OV2643 android mini camera module built in microphone

product details
Model No.

HBVCAM-1609 S1.0

Model Size

35mm × 31.5mm × 18.5mm±0.5MM

Temperature (Operation)-30°C to 70°C
Temperature (Stable Image)0°C to 50°C
Assembly techniqueSMT (ROSH)
FocusFixed
Object distance30CM-infinity
Resolution600LW/PH (Center)
PCB printing inkBlack
interfaceUSB 2.0
Power supplyUSB bus power
supply voltageDC 5V±5%
Maximum Power consumption

400 mW

Operating system requestWin XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc
 Sensor

OV2643 (1/4” )

Seneor PackageCSP,Bare Die
Maximum resolution

1600*1200

Sensitivity1250mv /(lux-sec)
Pixel Size2.2μm x 2.2μm
 Maximum Image Transfer Rate

MJPEG 320x240 30FPS / YUY2 320x240 30FPS
MJPEG 352x288 30FPS / YUY2 640x480 30FPS
MJPEG 640x480 30FPS / YUY2 800x600 15FPS
MJPEG 800x600 30FPS / YUY2 1280x720 8FPS
MJPEG 1280x720 30FPC / YUY2 1280x1024 8FPS
MJPEG 1280x1024 30FPC / YUY2 1600x1200 4FPS

S/N Ratio39B
Max Dynamic Range62B
Shutter typeElectronic rolling shutter
AGC/AEC/Whiter balanceAuto
Output FormatsYUY2/MJPEG
MicrophoneNO
Lens Construction4G+R
F/No2.0
EFL

2.6 mm

FOV120°
TV Distortion<-50%
Relative Illumination (Sensor)70%
 IR Filter650±10nm
Module PackageAnti-electrostatic tray
CertificationsFCC/CE/ROSH
 USB cable50CM 1M 2M 3M
1.The parameters of  FOV are just for your reference, Different Lens has different FOV        2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If  you mind it, please don’t make an order for it. Thank you for your understanding
