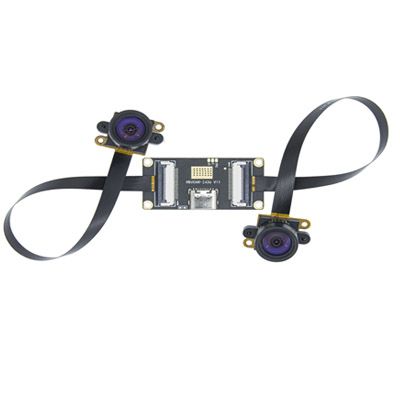

1. 1MP Dual lens global shutter camera module
2. PCB:40*20MM FPC：150*22*15.3±0.5MM
3. Dual camera spacing baseline: variable baseline
4. Product chip: OV9782(1/4'') X2
5. Maximum resolution, format, frame rate: 2560*800 MJPG 120FPS
6. Maximum viewing angle:95 ° without distortion
7. Sample Cable: Type-C-50CM
1MP OV9782 120FPS Full Color Global Shutter Camera Module For Scanning Machine. The 1MP OV9782 Global Shutter Camera Module is designed for high-performance scanning applications, offering sharp and accurate image capture in dynamic environments. Equipped with the OV9782 sensor, this camera module delivers 1-megapixel resolution at an impressive 120 frames per second, ensuring smooth, real-time image capture without motion blur, even in fast-moving scenes.
Featuring full-color global shutter technology, it efficiently captures clear and distortion-free images, making it ideal for barcode scanning, object recognition, and industrial automation systems. The compact and lightweight design allows easy integration into scanning machines, improving performance while minimizing system footprint.
Key Specifications:
Module No. | HBVCAM-2436 V11 |
Module Size | Refer to the module mechanical dimension |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 500LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 950 mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | OV9782 (1/4 ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 2560*800 |
Sensitivity | / |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | MJPG 2560x800 120FPS / YUY2 2560x800 5FPS MJPG 2560x720 120FPS / YUY2 2560x720 5FPS MJPG 1600x600 120FPS / YUY2 1600x600 10FPS MJPG 1280x800 120FPS / YUY2 1280x800 10FPS MJPG 1280x792 120FPS / YUY2 1280x792 10FPS MJPG 1280x720 120FPS / YUY2 1280x720 10FPS MJPG 1280x712 120FPS / YUY2 1280x712 10FPS MJPG 1280x400 120FPS / YUY2 1280x400 15FPS MJPG 800x600 120FPS / YUY2 800x600 15FPS MJPG 800x592 120FPS / YUY2 800x592 15FPS |
S/N Ratio | 38 dB |
Max Dynamic Range | 68 dB |
Shutter type | Global shutte |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | No |
Lens Construction | 2G+2P |
F/No | 2.2 |
EFL | 2.1mm |
FOV | D=100° |
TV Distortion | -4% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |
Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
