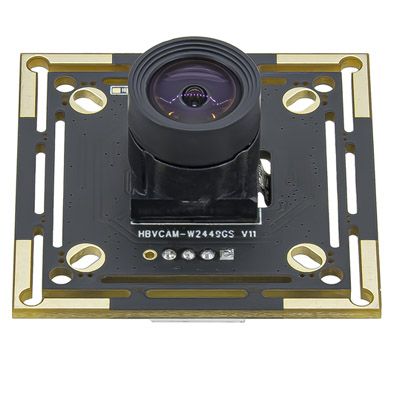

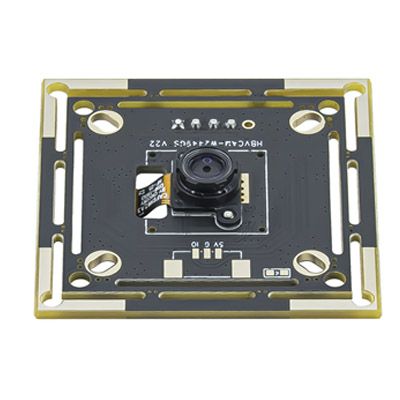

1.1MP high-definition color image 60fps global shutter camera module,
2. Product size:38*38*7.3±0.2MM
3. Product chip:AR0144(1/4'')
4. Maximum resolution, format, frame rate: 1280*800 MJPG 60FPS
5. Maximum viewing angle: 94 ° without distortion
6. Sample matching test line 4P-2.0MM-50C
Key Specifications:
Module No. | HBVCAM-W2449GS V22 |
Module Size | 38x38x7.3±0.2MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 500LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 750 mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | AR0144 (1/4 ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1280*800 |
Sensitivity | / |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | YUY2 1280x800 7FPS / MJPG 1280x800 60FPS YUY2 1280x720 7FPS / MJPG 1280x720 60FPS YUY2 800x600 10FPS / MJPG 800x600 60FPS YUY2 640x480 30FPS / MJPG 640x480 60FPS YUY2 320x240 30FPS / MJPG 320x240 60FPS
|
S/N Ratio | 38dB |
Max Dynamic Range | 63.9dB |
Shutter type | Global shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | NO |
Lens Construction | / |
F/No | 2.4 |
EFL | 3.0MM
|
FOV | D=94° |
TV Distortion | ＜1% |
Image Colror | Monochrome pictu |
Certifications | FCC/CE/ROSH |
Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
