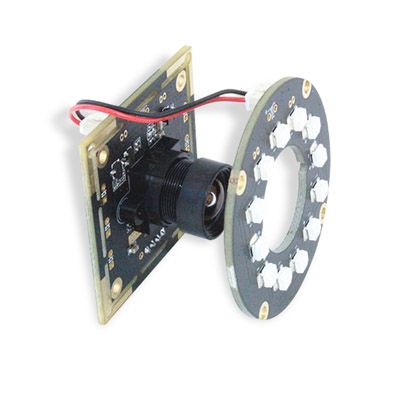

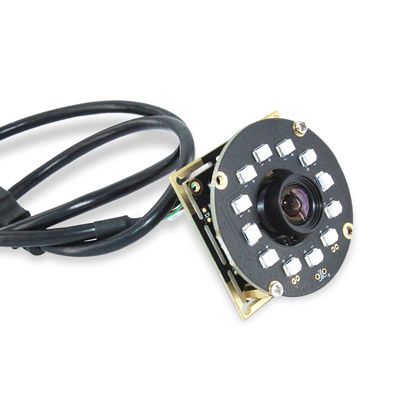

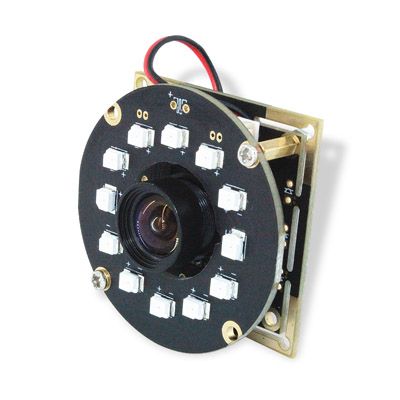

1. 1 million pixel high-definition 720P global exposure
2. Bottom plate size: 38 * 38 * 16 ± 0.5 MM

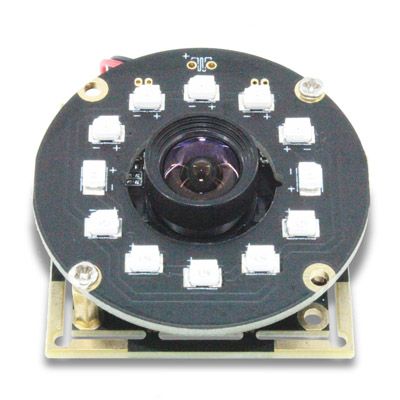

Lamp panel size: circular R=42mm
3. Product chip: OV9281 (1/4 '')
4. Maximum resolution, format, frame rate: 1280X720 MJPEG 60FPS
5. Maximum viewing angle: 100 ° without distortion
6. Sample matching test line 4P-2.0MM-50CM
Key Specifications:
Module No. | HBVCAM-1M1911GS V22 |
Module Size | 38mm × 38mm × 16mm±0.5MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 1200 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | OV9281 (1/4” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1280*720 |
Sensitivity | 1300mV /（lux-sec） |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | MJPEG 640x480 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
|
S/N Ratio | 38 db |
Max Dynamic Range | 68 db |
Shutter type | Global shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | NO |
Lens Construction | 2G2P |
F/No | 2.2 |
EFL | 2.1 mm |
FOV | 100° |
TV Distortion | <5% |
Relative Illumination (Sensor) | 70% |
IR Filter | 850±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |
1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
