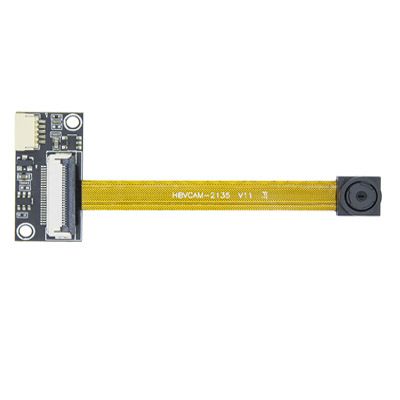

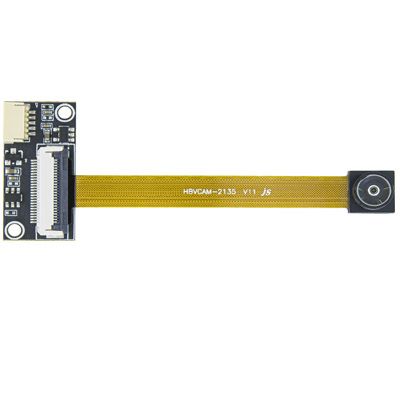

1. 0.3MP global exposure black and white image global shutter camera
2. Product size: Soft board length 60mm
Height 5.6mm ± 0.2 Hardboard: 26 * 12.5mm
3. Product chip: OV7251 (1/7.5 '')

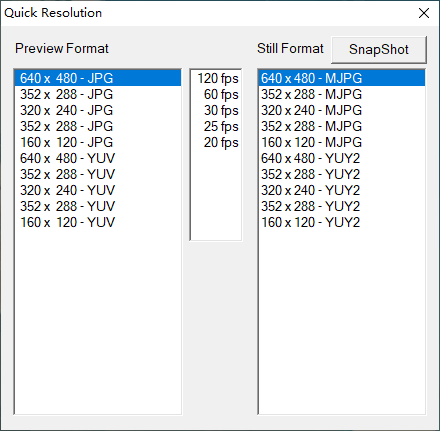

4. Maximum resolution, format, frame rate: 640X480 MJPEG 120FPS
5. Maximum viewing angle: 160 ° withdistortion
6. Sample matching test line 5P-1.0MM-50CM
For customized information purposes, the OV7750/OV7251 includes 256 bits of one-time programmable (OTP) memory.
The OV7750/OV7251 has one lane MIPI interface.
Key Specifications:
Module No. | HBVCAM-2117 V11 |
Module Size | 68.2mm × 26.0mm × 9.80mm±0.3MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 380 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | OV9732 (1/4” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1280*720 |
Sensitivity | 2066mV /（lux-sec） |
Pixel Size | 2.0µm x 2.0µm |
Maximum Image Transfer Rate |
MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS
|
S/N Ratio | 39db |
Max Dynamic Range | 72db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | NO |
Lens Construction | 2G2P |
F/No | 2.0 |
EFL | 1.66 mm |
FOV | 160° |
TV Distortion | <8.5% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |

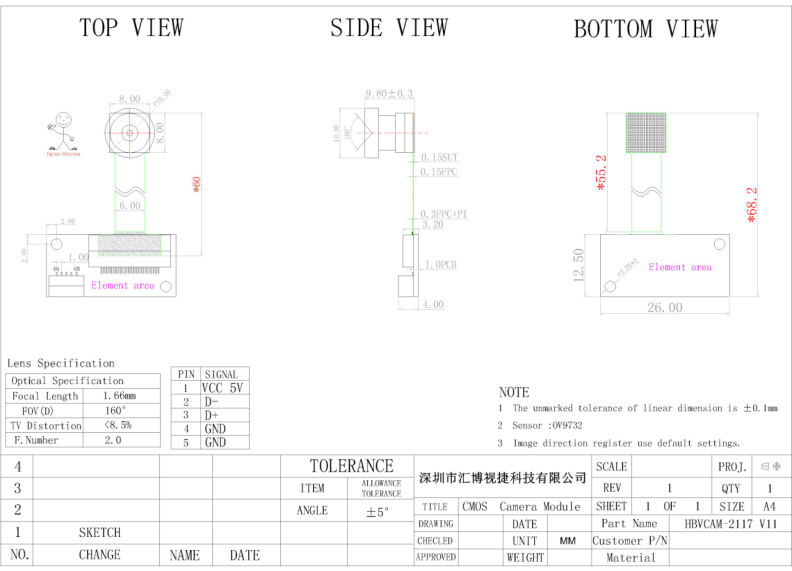

Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
