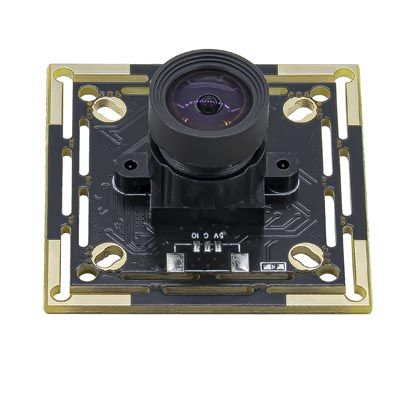

1.0.3mp high-definition monochrome image 180fps global shutter camera module
2. Product size: 38*38*16.2±0.5 MM
3. Product chip: SC035GS(1/6.0'')
4. Maximum resolution, format, frame rate:640*480 MJPG 180FPS
5. Maximum viewing angle: 72°
6. Sample matching test line 4P-2.0MM-50CM
Key Specifications :
Module No. | HBVCAM-V2548GS V11 |
Module Size | 38x38x16.2±0.5MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 300LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 800mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | SC035GS (1/6.0 ) |
Seneor Package | / |
Maximum resolution | 640*480 |
Sensitivity | / |
Pixel Size | 3.744*3.744µm |
Maximum Image Transfer Rate | MJPG 640x480 180FPS / YUY2 640x480 30FPS MJPG 640x400 180FPS / YUY2 640x400 30FPS MJPG 640x360 180FPS / YUY2 640x360 30FPS MJPG 352x288 180FPS / YUY2 352x288 30FPS MJPG 320x240 180FPS / YUY2 320x240 30FPS MJPG 160x120 180FPS / YUY2 160x120 30FPS
|
S/N Ratio | / |
Max Dynamic Range | / |
Shutter type | Global shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | NO |
Lens Construction | 4E |
F/No | 2.2 |
EFL | 2.1mm |
FOV | D=72° |
TV Distortion | ＜2% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |

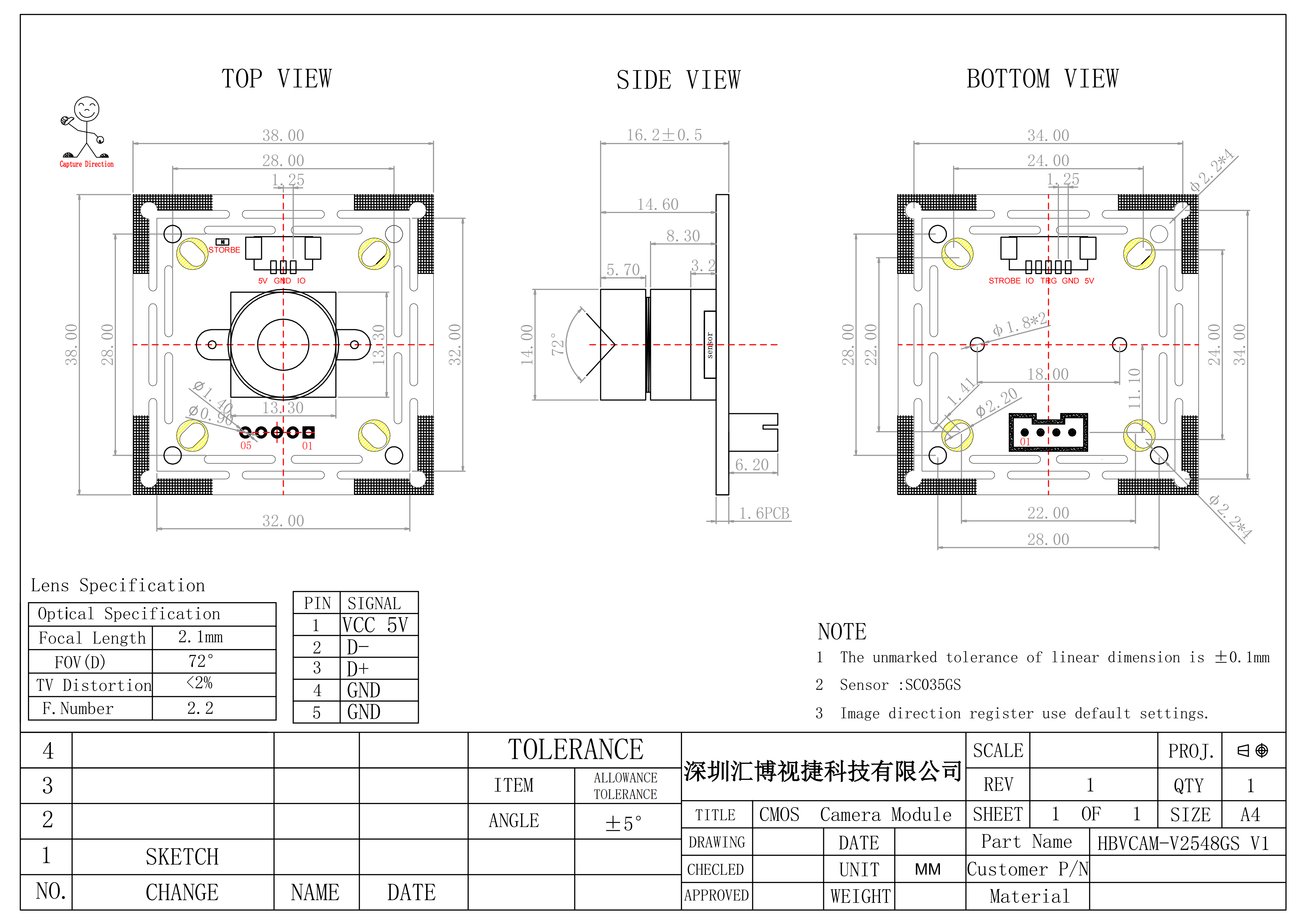

Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
