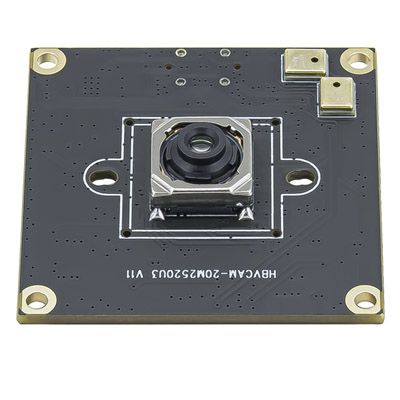

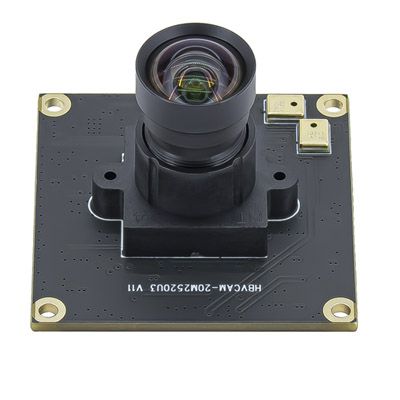

1. 21MP USB3.0 Camera Module
2. Product size: 38*38*22.1±0.5 MM
3. Product chip:IMX230（1/2.4）
4. Maximum resolution, format, frame rate: ：5344*4016 MJPG 24FPS 3840*2160 30FPS（4Kresolution)
5. Maximum viewing angle: 90° without distortion
6.Built in dual digital microphone
Key Specifications:
Module No. | HBVCAM-20M2520U3 V11 |
Module Size | 38x38x22.1±0.5MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 3.1 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | / |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | IMX230 (1/2.4 ) |
Seneor Package | / |
Maximum resolution | 5344*4016 |
Sensitivity | / |
Pixel Size | 1.12*1.12μm
|
Maximum Image Transfer Rate | MJPG 5344x4016 24FPS / YUY2 5344x4016 5FPS MJPG 5344x3008 30FPS / YUY2 5344x3008 5FPS MJPG 5120x3840 24FPS / YUY2 5120x3840 5FPS MJPG 5120x2880 30FPS / YUY2 5120x2880 5FPS MJPG 4736x2664 30FPS / YUY2 4736x2664 10FPS MJPG 4096x2160 30FPS / YUY2 4096x2160 15FPS MJPG 3840x2160 30FPS / YUY2 3840x2160 15FPS MJPG 3264x2448 30FPS / YUY2 3264x2448 15FPS MJPG 2592x1944 30FPS / YUY2 2592x1944 24FPS MJPG 2560x1440 30FPS / YUY2 2560x1440 30FPS MJPG 2048x1536 30FPS / YUY2 2048x1536 30FPS MJPG 1600x1200 30FPS / YUY2 1600x1200 30FPS |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | Support |
Lens Construction | 2G+5P |
F/No | 2.2 |
EFL | 3.94mm |
FOV | D=90° |
TV Distortion | ＜-1.54% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |
Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
