1.5MP Global Shutter USB Camera Module
2. Product size: 38*38*24.5±0.5MM
3. Product chip: OG05B10(1/2.53'')
4. Maximum resolution, format, and frame rate: 2592*1944 MJPG 50FPS
5. Maximum viewing angle: 94 °
6. Built in dual digital microphone
7. Sample matching test line 4P-2.0MM-50CM
Key Specifications:
Module No. | HBVCAM-5M2406GS V33 |
Module Size | 38x38x24.5±0.5MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 800LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 16.5k e/Lux.sec @ 530nm |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | OG05B10 (1/2.53 ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 2592*1944 |
Pixel Size | 2.2µm x 2.2µm |
Maximum Image Transfer Rate | MJPG 2592x1944 50FPS / YUY2 2592x1944 2.5FPS MJPG 2592x1440 60FPS / YUY2 2592x1440 2.5FPS MJPG 2560x1440 60FPS / YUY2 2560x1440 2.5FPS MJPG 2304x1296 60FPS / YUY2 2304x1296 2.5FPS MJPG 2048x1536 50FPS / YUY2 2048x1536 2.5FPS MJPG 1920x1080 60FPS / YUY2 1920x1080 5FPS MJPG 1600x1200 50FPS / YUY2 1600x1200 5FPS MJPG 1600x900 60FPS / YUY2 1600x900 5FPS MJPG 1280x960 50FPS / YUY2 1280x960 5FPS MJPG 1280x720 60FPS / YUY2 1280x720 10FPS MJPG 1024x768 50FPS / YUY2 1024x768 10FPS MJPG 1024x576 60FPS / YUY2 1024x576 15FPS |
S/N Ratio | 39 dB |
Max Dynamic Range | 71 dB |
Shutter type | Global shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | Support |
Lens Construction | 4G+2P |
F/No | 2.6 |
EFL | 3.25mm |
FOV | D=94° |
TV Distortion | ＜-1% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |

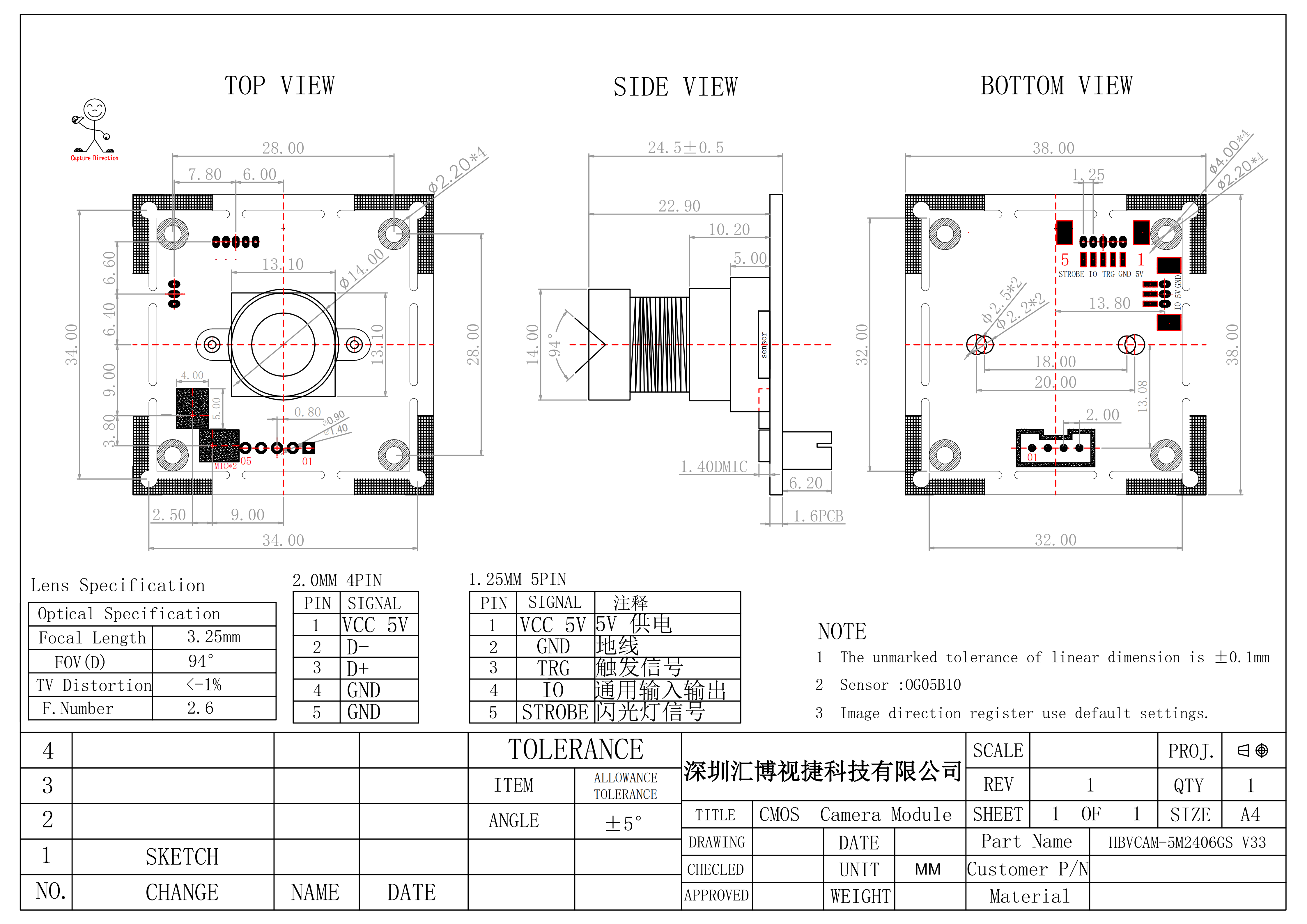

Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
