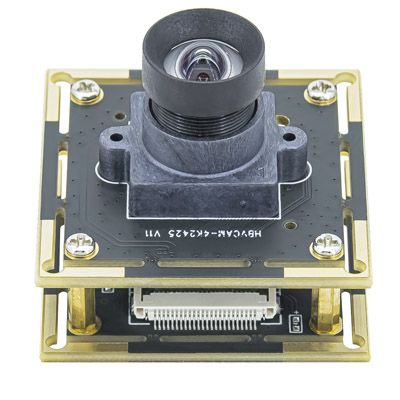

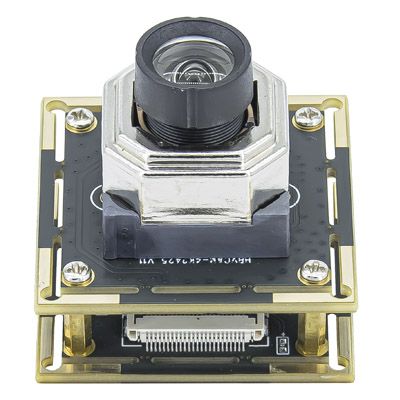

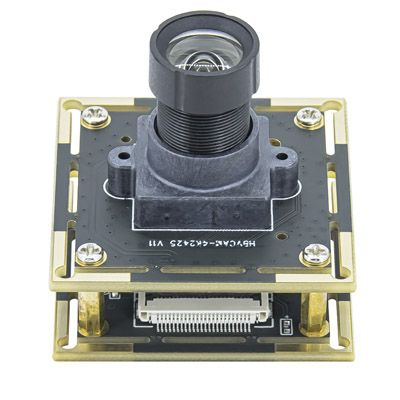

1,8.3 4K USB Camera Module
2、Product Size：38*38*31.5±0.5 MM
3、Product Sensor：IMX274(1/2.5'')
4、Max resolution, format & frame rate ：
3840*2160 MJPEG 30FPS
5、Max viewing angle：100° distortion-free
6、Built-in dual digital microphones
7、Samples equipped with 4P-2.0MM-50CM test cables

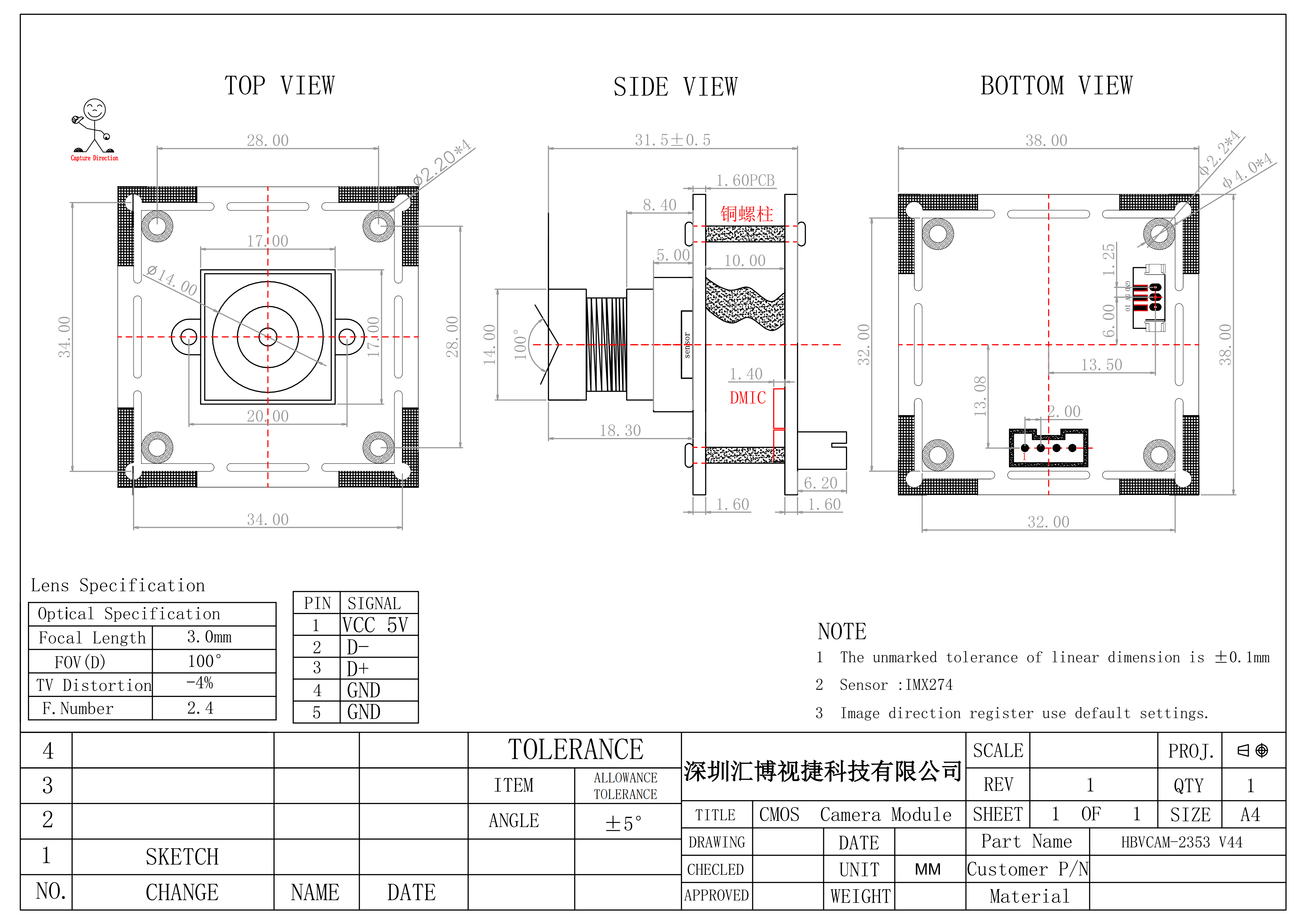

Module Mechanical Dimension:
Key Specifications:
Module No. | HBVCAM-2353 V44 |
Module Size | 38x38x31.5±0.5MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 1000LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 850 mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | IMX274 (1/2.5 ) |
Seneor Package | / |
Maximum resolution | 3840*2160 |
Sensitivity | / |
Pixel Size | 1.62*1.62µm |
Maximum Image Transfer Rate | YUY2 3840x2160 1FPS / MJPG 3840x2160 30FPS YUY2 2592x1944 1FPS / MJPG 2592x1944 30FPS YUY2 2048x1536 1FPS / MJPG 2048x1536 30FPS YUY2 1920x1080 5FPS / MJPG 1920x1080 120FPS YUY2 1600x1200 5FPS / MJPG 1600x1200 30FPS YUY2 1280x960 5FPS / MJPG 1280x960 120FPS YUY2 1280x720 5FPS / MJPG 1280x720 180FPS YUY2 1280x536 5FPS / MJPG 1280x536 240FPS YUY2 1024X768 5FPS / MJPG 1024X768 120FPS YUY2 800x600 5FPS / MJPG 800x600 180FPS YUY2 640x480 30FPS / MJPG 640x480 240FPS YUY2 640x360 30FPS / MJPG 640x360 240FPS YUY2 320x240 120FPS / MJPG 320x240 240FPS
YUY2 1600x1200 5FPS
|
S/N Ratio | / |
Max Dynamic Range | / |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | Support |
Lens Construction | 3G+2P |
F/No | 2.4 |
EFL | 3.0 mm |
FOV | D=100° |
TV Distortion | -4% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |
Module Mechanical Dimension:
