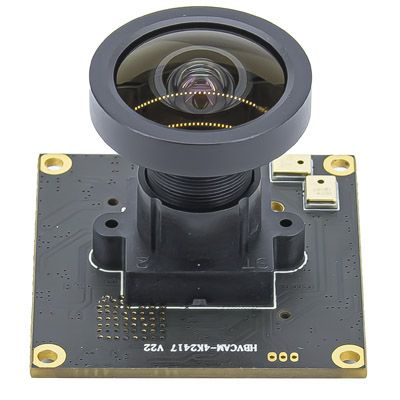

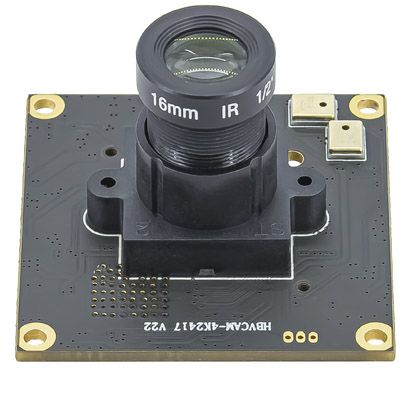

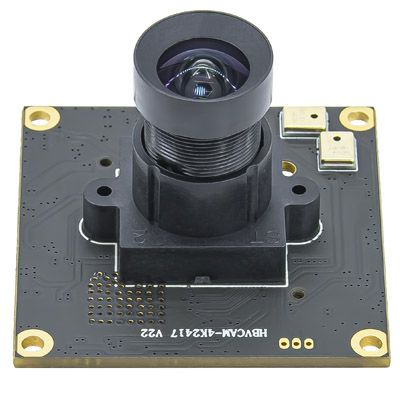

Home >> Products >> 4K USB Camera Module
1. 8.29 million pixel true 4K camera modules
2. Product size: 38 * 38 *29.6 ± 0.5 MM
3. Product chip: IMX678 (1/1.8 '')
4. Maximum resolution, format, frame rate: 3840 * 2160 MJPEG 30FPS
5. Maximum viewing angle: 90 ° distortion free 25mm head
6. Built in dual digital microphone
7. Sample testing line 4P-2.0MM-50CM
Key Specifications:
Module No. | HBVCAM-4K2417 V22 |
Module Size | 38x38x25.0±0.5MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 1000LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 1050 mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | IMX678 (1/1.8 ) |
Seneor Package | / |
Maximum resolution | 3840*2160 |
Sensitivity | / |
Pixel Size | 2.0*2.0 μm
|
Maximum Image Transfer Rate | YUY2 3840x2160 1FPS / MJPG 3840x2160 30FPS YUY2 2592x1944 1FPS / MJPG 2592x1944 30FPS YUY2 2048x1536 1FPS / MJPG 2048x1536 30FPS YUY2 1920x1080 5FPS / MJPG 1920x1080 60FPS YUY2 1600x1200 5FPS / MJPG 1600x1200 30FPS YUY2 1280x960 5FPS / MJPG 1280x960 60FPS YUY2 1280x720 5FPS / MJPG 1280x720 60FPS YUY2 1024X768 5FPS / MJPG 1024X768 60FPS YUY2 800x600 5FPS / MJPG 800x600 60FPS YUY2 640x480 30FPS / MJPG 640x480 60FPS
|
S/N Ratio | / |
Max Dynamic Range | / |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | Support |
Lens Construction | 3G+2P |
F/No | 2.8 |
EFL | 4.2 mm |
FOV | D=90° |
TV Distortion | -1% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |

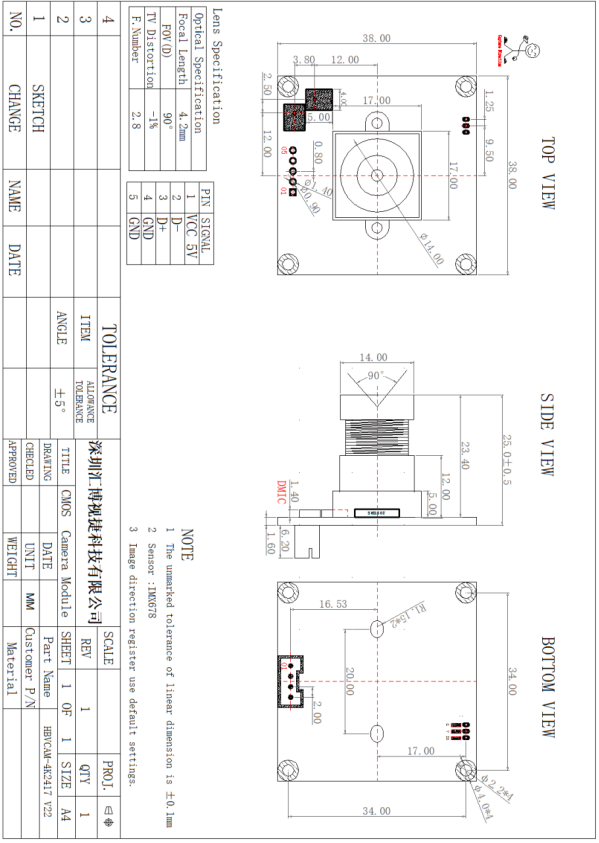

Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
