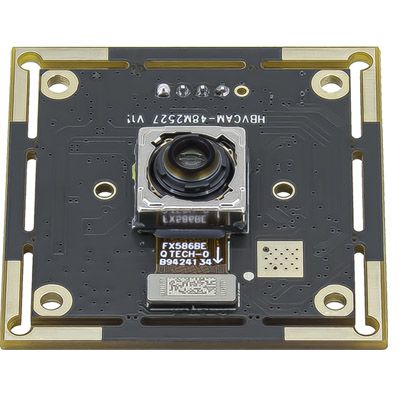

1.48MP Auto Focus USB Camera Module
2. Product size: 38 * 38 *±0.3 MM
3. Product chip: IMX586(1/2.0'')
4. Maximum resolution, format, frame rate:
8000*6000 5FPS
5. Maximum viewing angle: 77 ° autofocus without distortion
6. Sample matching test line 4P-2.0MM-50CM
Key Specifications:
Module No. | HBVCAM-48M2527 V11 |
Module Size | 38x38x7.7±0.3MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Automatic focusing |
Object distance | 30CM-infinity（adjustable） |
Resolution | 1000LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 1500 mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | IMX586 (1/2.0 ) |
Maximum resolution | 8000*6000 |
Pixel Size | 0.8*0.8 μm
|
Maximum Image Transfer Rate | MJPG 8000x6000 5FPS / YUY2 1920x1080 4FPS MJPG 4000x3000 20FPS / YUY2 1280x960 5FPS MJPG 3840x2160 30FPS / YUY2 1280x720 8FPS MJPG 2592x1944 30FPS / YUY2 640x480 30FPS MJPG 2560x1440 30FPS MJPG 1920x1080 30FPS MJPG 1600x1200 30FPS MJPG 1280x960 30FPS MJPG 1280x720 30FPS MJPG 800x600 30FPS MJPG 640x480 30FPS |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | NO |
Lens Construction | 6P |
F/No | 1.8 |
EFL | 4.74 mm |
FOV | D=77° |
TV Distortion | ＜1.5% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |
Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
