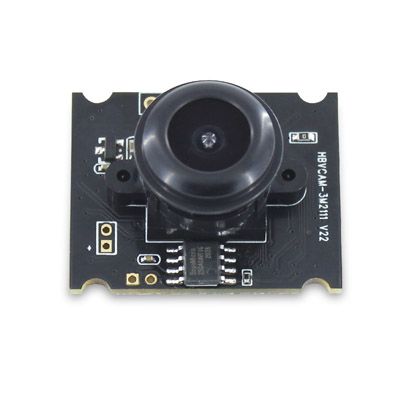

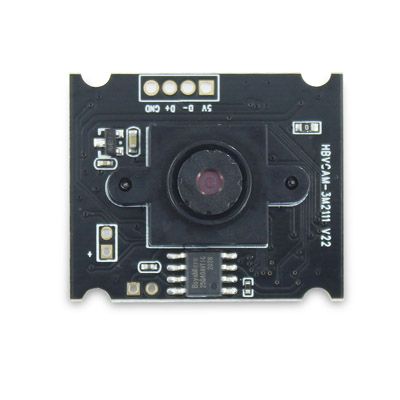

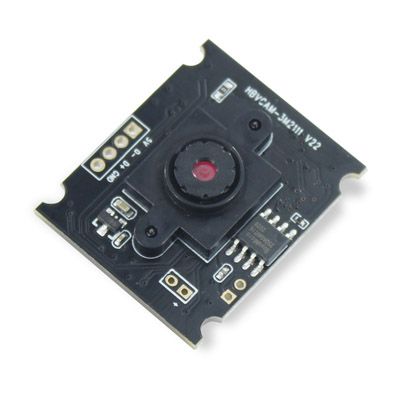

OV3660 3MP USB Camera Module for PC webcam
1.Product size:30mm × 25mm × 14.8mm±0.5MM
2. Product chip: OV3660 (1/5 '')
3. Maximum resolution, format, and frame rate: 2048 * 1536 MJPEG 15FPS
1920 * 1080 MJPEG 20FPS
4. Maximum viewing angle: 110 ° with distorted wide angle
5. Integrated analog microphone
6.USB Cable: 5P-1.0MM-40CM
Key Specifications:
Module No. | HBVCAM-3M2111 V22 |
Module Size | 30mm × 25mm × 14.8mm±0.5MM |
Temperature (Operation) | -20°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 640mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | OV3660 (1/5” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 2048*1536 |
Sensitivity | 670mV /（lux-sec） |
Pixel Size | 1.4µm x 1.4µm |
Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 20FPS / YUY2 640x480 8FPS MJPEG 1280x720 20FPS / YUY2 1280X720 8FPS MJPEG 1920x1080 20FPS / YUY2 1920X1080 5FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 5FPS |
S/N Ratio | 34 db |
Max Dynamic Range | 70 db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | Support |
Lens Construction | 4E+IR |
F/No | 2.4 |
EFL | 1.85 mm |
FOV | 110° |
TV Distortion | <7.6% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |

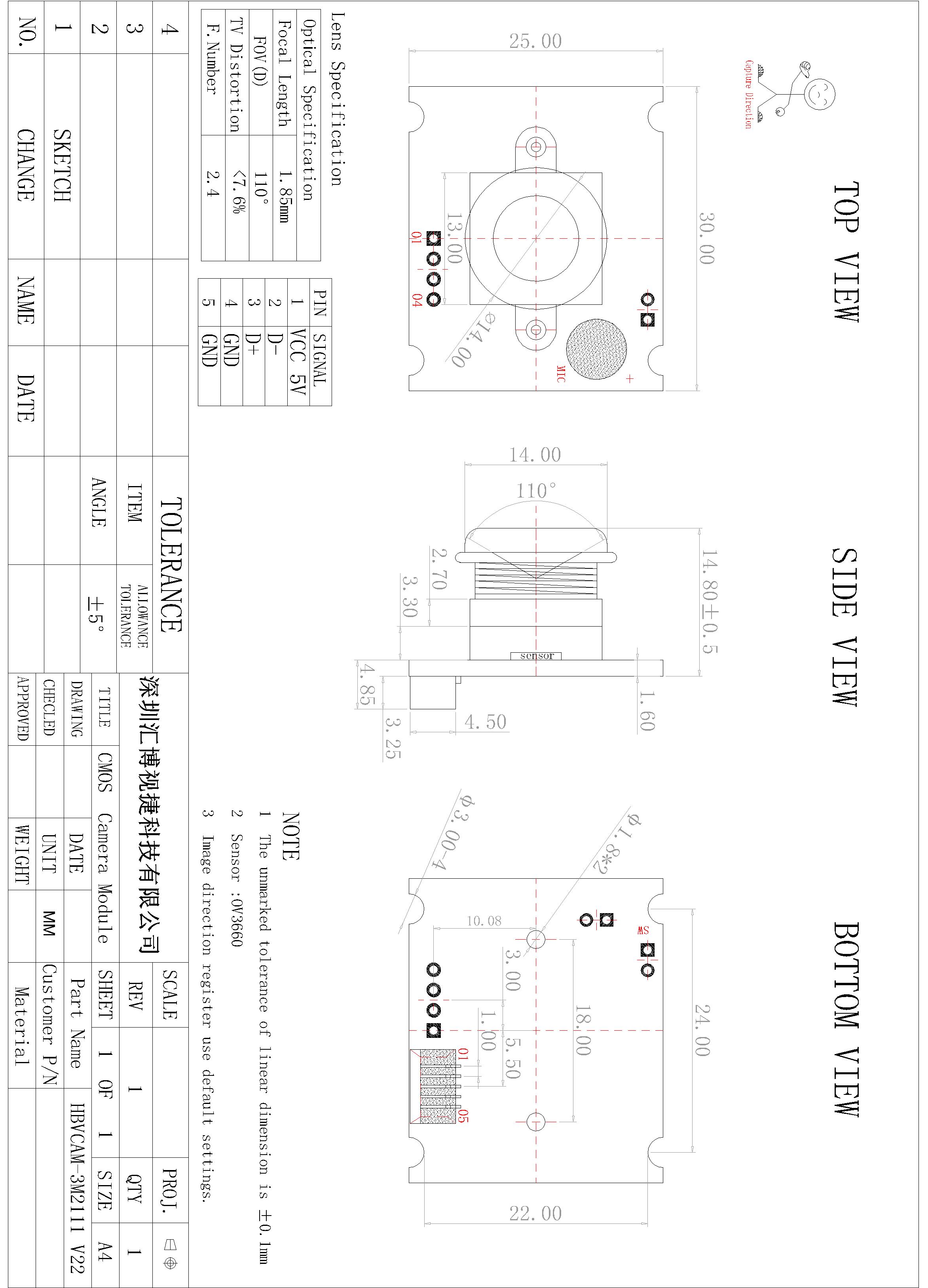

Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
