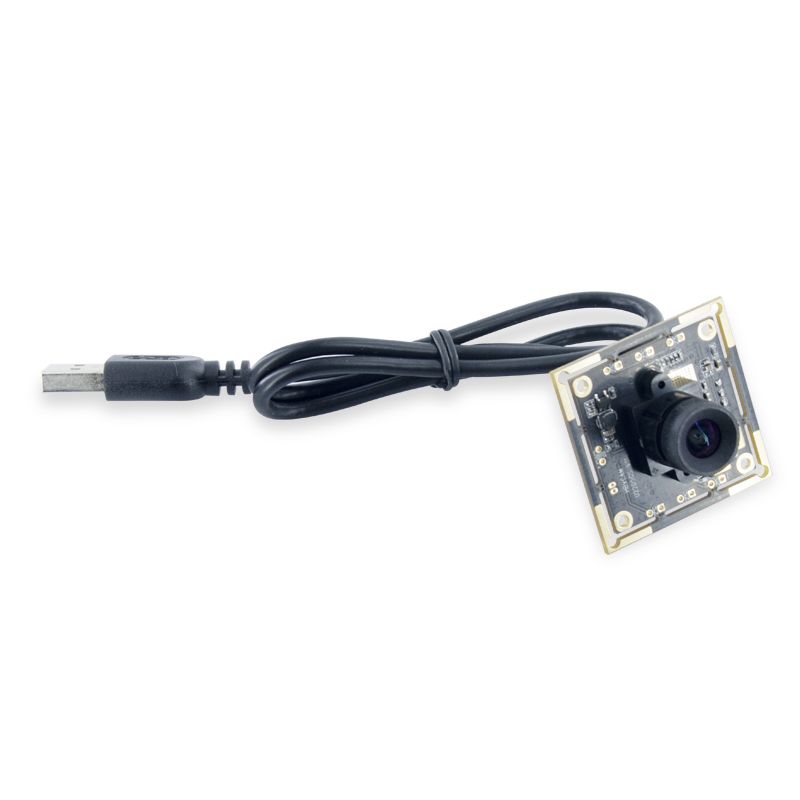

2MP USB2.0 Global Shutter Built-in Camera Module for high-speed scanning, code scanning, recognition, shopping cart devices

Module No.

HBVCAM-U2205GS V11

Module Size

38mm × 38mm × 24.50mm±0.5MM

Temperature (Operation)

-30°C to 70°C

Temperature (Stable Image)

0°C to 50°C

Assembly technique

SMT (ROSH)

Focus

Fixed

Object distance

30CM-infinity

Resolution

600LW/PH (Center)

PCB printing ink

Black

interface

USB 2.0

Power suuply

USB bus power

supply voltage

DC 5V±5%

Maximum Power consumption

890 mW

Operating system request

Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc

Sensor

OG02B10 (1/2.9” )

Seneor Package

CSP,Bare Die

Maximum resolution

1600*1200

Sensitivity

1900mV /（lux-sec）

Pixel Size

3.0µm x 3.0µm

MJPEG 640x480

120FPS /

YUY2 640x480

30FPS

MJPEG 848x480

120FPS /

YUY2 848x480

15FPS

Maximum Image Transfer Rate

MJPEG 1280x720

MJPEG 1280x960

120FPS /

60FPS /

YUY2 1280x720

YUY2 1280x960

10FPS

1FPS

MJPEG 1600x1200

60FPS /

YUY2 1600x1200

1FPS

S/N Ratio

37.4db

Max Dynamic Range

68db

Shutter type

Electronic rolling shutter

AGC/AEC/Whiter balance

Auto

Output Formats

YUY2/MJPEG

Microphone

Support

Lens Construction

2G2P

F/No

2.4

EFL

3.6 mm

FOV

94°

TV Distortion

<5%

Relative Illumination (Sensor)

70%

IR Filter

650±10nm

Module Package

Anti-electrostatic tray

Certifications

FCC/CE/ROSH
