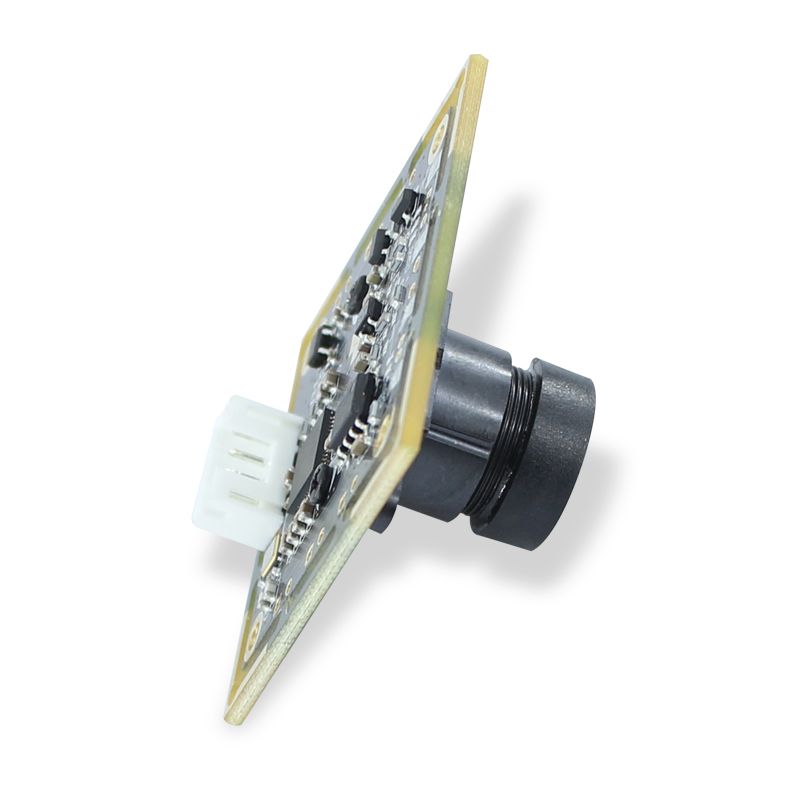

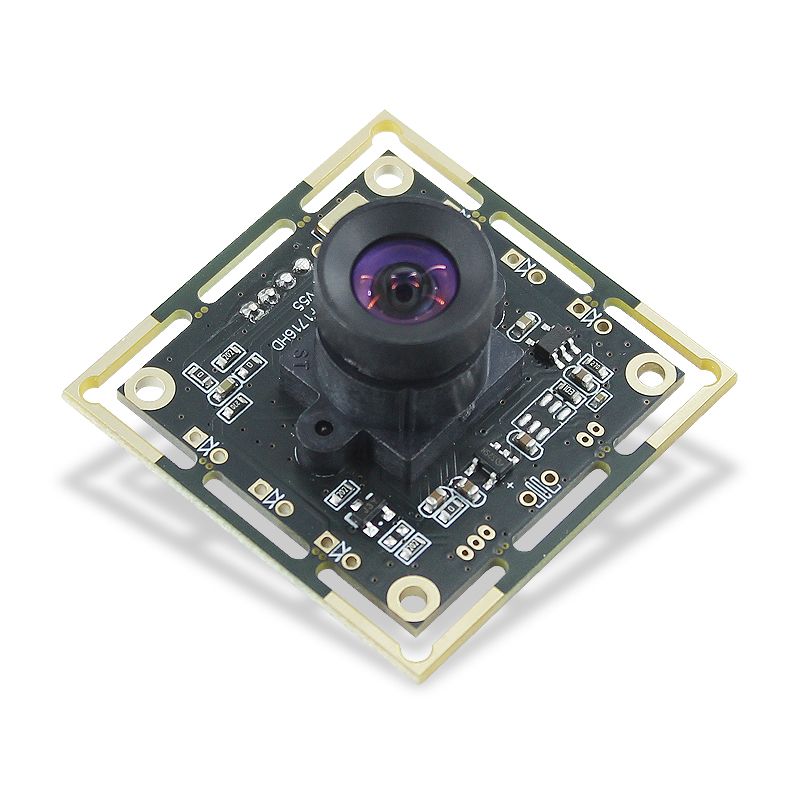

HD CMOS camera module from HUIBER - the ultimate solution for high-quality imaging and video capture! This camera module features an advanced OV2710 CMOS image sensor, combined with a distortionless 100-degree lens to deliver stunning, high-resolution images and videos with exceptional clarity and detail.
The OV2710 CMOS image sensor is a high-performance image sensor that features a 2.1-megapixel resolution (1920x1080 pixels) and advanced image processing capabilities. It is capable of capturing high-quality images and video even in low-light conditions, thanks to its low-light sensitivity and advanced pixel technology.
The FOV 100 degree distortionless lens OV2710 HD CMOS camera module is a type of camera module that uses an OV2710 CMOS image sensor and a 100-degree field of view lens with minimal distortion. This HD CMOS camera module is designed to capture high-definition (HD) video and images with exceptional clarity and detail.
The 100-degree distortionless lens is designed to provide a wide-angle view without any noticeable distortion, making it ideal for capturing panoramic views, landscapes, and group shots. The HD CMOS camera module is made from high-quality optical glass and is coated to reduce glare and improve image quality.
The FOV 100-degree distortionless lens OV2710 HD CMOS camera module is a high-performance camera module that is ideal for a wide range of applications, including security cameras, drones, video conferencing systems, and more.
| Model No. | HBVCAM-1716HD V4 |
| Model Size | 38mm × 38mm × 17.5mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1100mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV2710 (1/2.7” ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 10mV /(lux-sec) |
| Pixel Size | 3μm x 3μm |
| Maximum Image Transfer Rate | MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / MJPEG 1920x1080 30FPS / |
| S/N Ratio | 39B |
| Max Dynamic Range | 69 |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.0mm |
| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM 1M 2M 3M |
| 1. The parameters of FOV are just for your reference, Different Lens has different FOV 2. The frame rate is related to Light, operating system and so on, the frame rate exist a little error. If your mind, please don't make an order for it. Thank you for your understanding | |
The OV2710 CMOS image sensor is capable of capturing 1080p full HD video and high-quality images with a resolution of 2.1 megapixels. HD CMOS camera module also boasts a low-light sensitivity that allows it to capture clear and detailed images even in challenging lighting conditions.
The distortionless 100-degree lens of this camera module is made from high-quality optical glass and is coated to reduce glare and improve image quality. This lens provides a wide-angle view without any noticeable distortion, making HD CMOS camera module perfect for capturing panoramic views, landscapes, and group shots.
This HD CMOS camera module is easy to integrate and is compatible with a wide range of devices and applications, including drones, security cameras, video conferencing systems, and more. HD CMOS camera module is also highly customizable, with options for lens selection and module design to suit specific project requirements.
With its advanced imaging technology, superior performance, and versatile design, the HUIBER HD CMOS camera module is the perfect choice for those seeking high-quality imaging and video capture solutions. Contact us today to learn more!
Q: What is an HD CMOS camera module?
A: A HD CMOS camera module is a type of camera that uses a CMOS (Complementary Metal-Oxide-Semiconductor) sensor to capture high-definition images and video.
Q: What are the advantages of an HD CMOS camera module?
A: The advantages of an HD CMOS camera module include high resolution, low power consumption, high sensitivity, fast readout speed, and low noise.
Q: What is the resolution of a typical HD CMOS camera module?
A: The resolution of a typical HD CMOS camera module is 720p (1280x720) or 1080p (1920x1080) pixels.
Q: What are the applications of HD CMOS camera modules?
A: HD CMOS camera modules are used in a variety of applications, including smartphones, tablets, laptops, security cameras, medical devices, automotive systems, and drones.
Q: What factors should be considered when selecting an HD CMOS camera module?
A: Factors that should be considered when selecting an HD CMOS camera module include resolution, frame rate, low-light performance, power consumption, size and weight, and cost.
Q: Can HD CMOS camera modules be customized for specific applications?
A: Yes, HD CMOS camera modules can be customized for specific applications by adjusting parameters such as pixel size, lens aperture, and image processing algorithms.
Q: What is the difference between a CMOS sensor and a CCD (Charge-Coupled Device) sensor?
A: CMOS sensors and CCD sensors are both used in digital cameras, but CMOS sensors are generally less expensive, consume less power, and offer faster readout speeds, while CCD sensors generally have better image quality and lower noise.
Q: What is the difference between an HD CMOS camera module and a full-frame DSLR (Digital Single-Lens Reflex) camera?
A: A HD CMOS camera module is typically smaller, lighter, and less expensive than a full-frame DSLR camera, but has a smaller sensor size and generally lower image quality.
