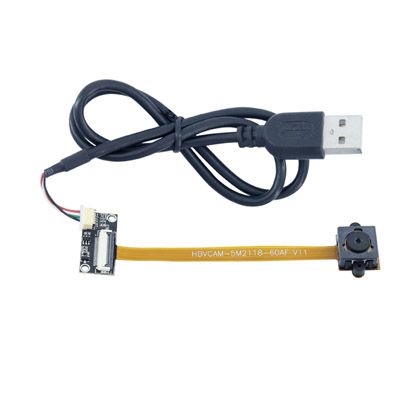

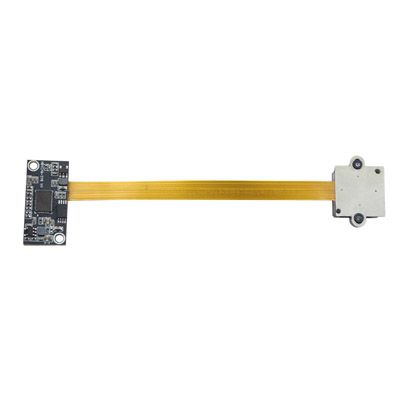

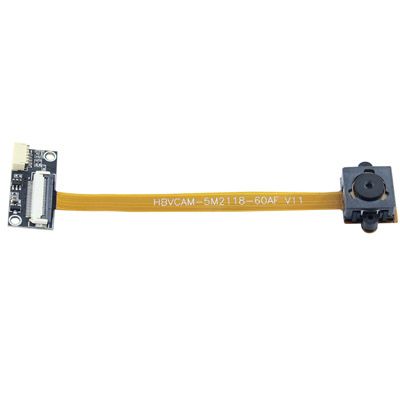

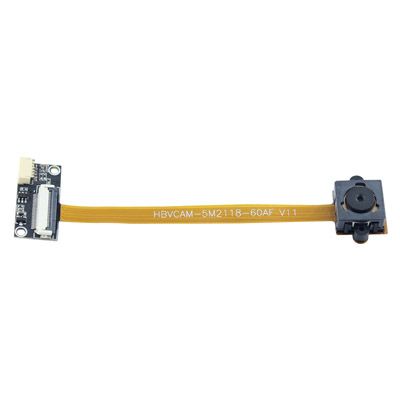

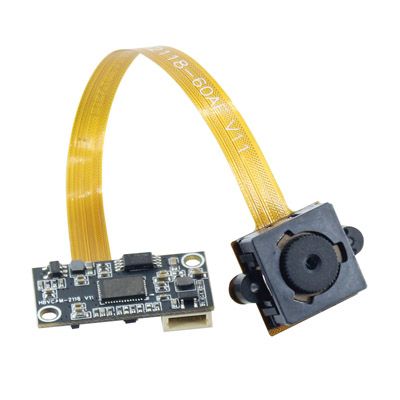

1.2 megapixels 1080P HD autofocus camera module
2. Product size: 107.7 * 26 * 12MM
3. Product chip: PS5260(1/2.7”)
4. MAX resolution, format, frame rate:
1920 * 1080mjpeg 30/60FPS
5. Max View: 75/90 ° No Distortion
6. Sample usb cable 5p-1.0 MM-40CM
Key Specifications:
Module No. | HBVCAM-2118 V11 |
Module Size | PCB:26x12.5MM FPC:78.8x22x16.0±0.5MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black+Yellow |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 400 mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | PS5460 (1/2.7) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1920*1080 |
Sensitivity | 4700mV/Lux-sec |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | YUY2 1920x1080 5FPS / MJPG 1920x1080 30FPS YUY2 1280x800 10FPS / MJPG 1280x800 30FPS YUY2 1280x720 10FPS / MJPG 1280x720 30FPS YUY2 1024x768 10FPS / MJPG 1024x768 30FPS YUY2 960x540 10FPS / MJPG 960x540 30FPS YUY2 848x480 10FPS / MJPG 848x480 30FPS YUY2 800x600 10FPS / MJPG 800x600 30FPS YUY2 640x480 30FPS / MJPG 640x480 30FPS YUY2 640x360 30FPS / MJPG 640x360 30FPS YUY2 352x288 30FPS / MJPG 352x288 30FPS YUY2 320x240 30FPS / MJPG 320x240 30FPS
|
Max Dynamic Range | 83dB |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | No |
Lens Construction | 2G+2P |
F/No | 2.2 |
EFL | 2.1 mm |
FOV | D=100° |
TV Distortion | -4.5% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |

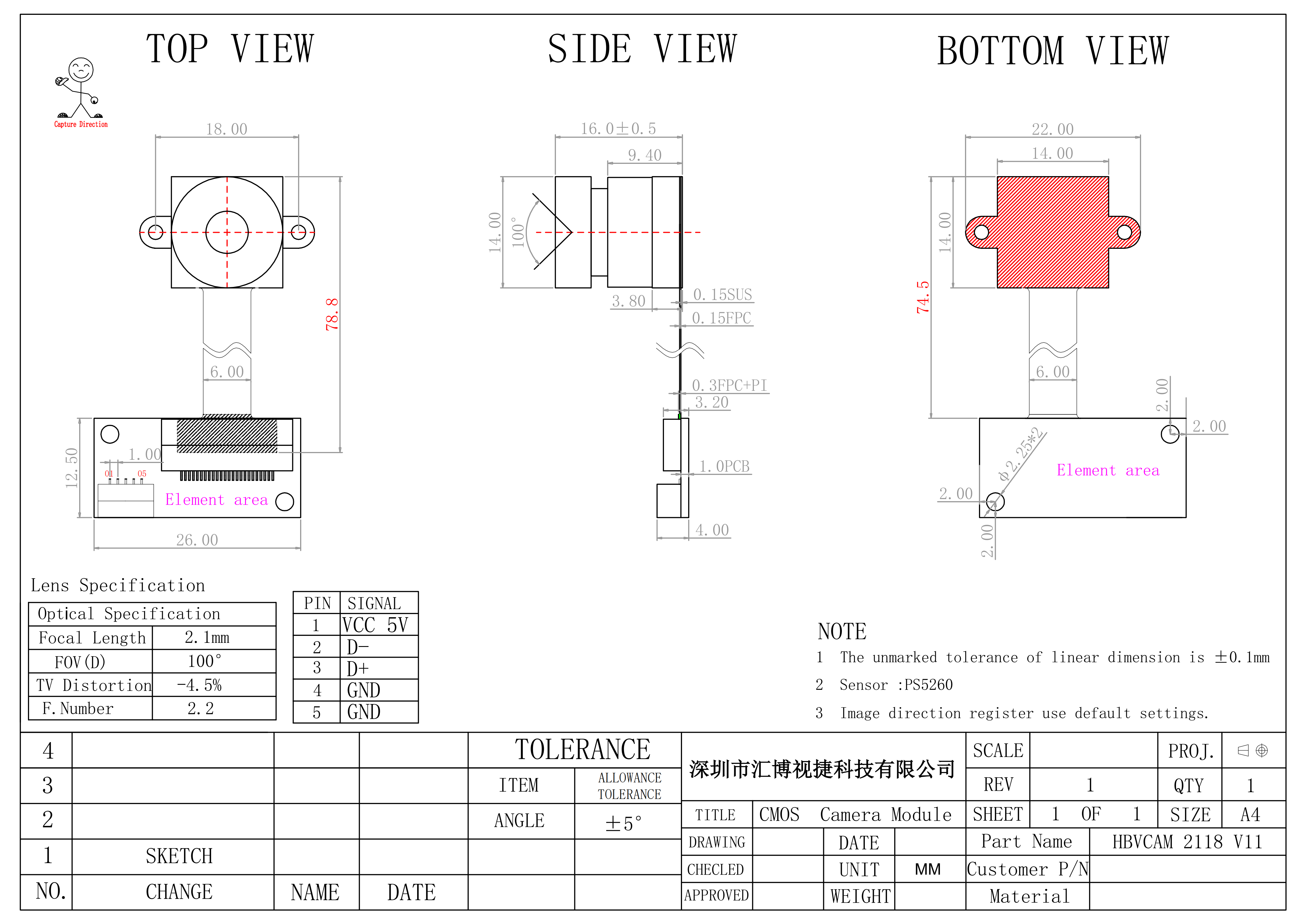

Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
