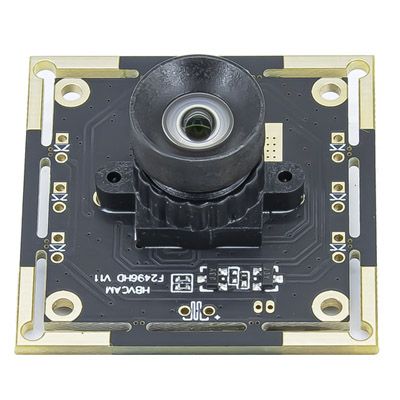

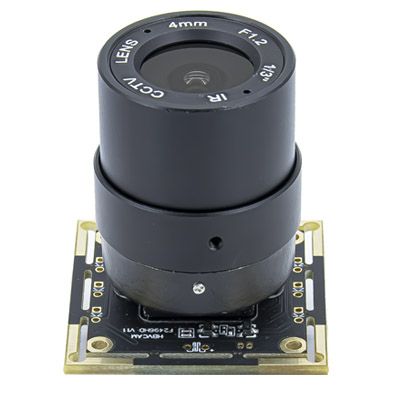

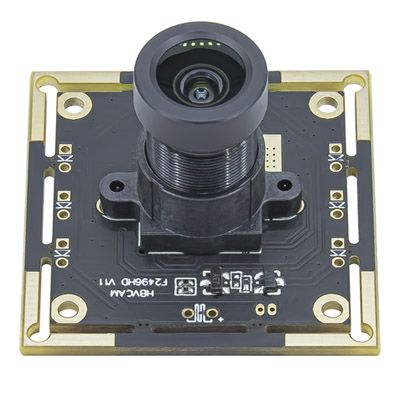

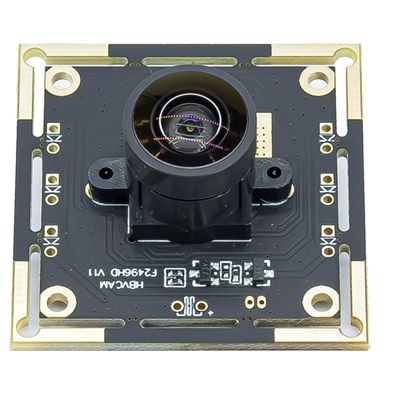

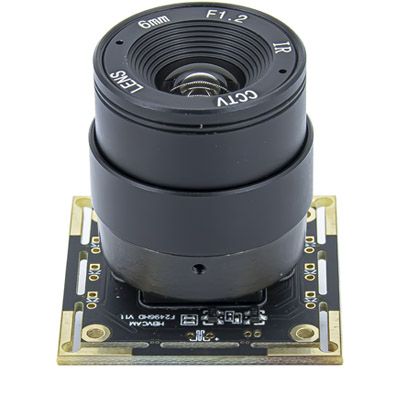

1、2MP HD 1080P embedded camera module
2、Product Dimensions：38*38*17.5±0.5MM
3、Sensor：F22(1/2.7'')
4、Max Resolution, Format, Frame Rate: 1920*1080 MJPEG 30FPS
5、Max Field of View: 102°distortion free
6、Sample comes with a 4P-2.0MM-50CM test cable
Key Specifications :
Module No.
HBVCAM-F2496HD V11:
Module Size: 38/32mm ×38/32mm ×17.5 mm±0 .5MM
Temperature (Operation):-30°C to 70°C:Temperature (Stable Image):0°C to 50°C
Assembly technique:SMT (ROSH)
Focus:Fixed
Object distance:30CM-infinity
Resolution:600LW/PH (Center)
PCB printing ink:Black
interface:USB 2.0
Power suuply:USB bus power
supply voltage:DC 5V±5%
Maximum Power consumption:800 mW
Operating system request:Win XP/win 7-11、vista /android /mac /Linux with uvc
Sensor:JX-F22 (1/2.7”)
Seneor Package:CSP ,Bare Die
Maximum resolution:1920*1080
Sensitivity:3900mV /（lux-sec）
Pixel Size:3 µm x 3 µm
Maximum Image Transfer Rate
MJPEG 640x360 30FPS / YUY2 640x360 30FPS
MJPEG 640x480 30FPS / YUY2 640x480 30FPS
MJPEG 848x480 30FPS / YUY2 848x480 15FPS
MJPEG 800x600 30FPS / YUY2 800x600 15FPS
MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS
MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
S/N Ratio:38 db
Max Dynamic Range:73 db
Shutter type:Electronic rolling shutter
AGC/AEC/Whiter balance：Auto
Output Formats：YUY2/MJPEG
Microphone：NO
Lens Construction：2G2P
F/No：2.4
EFL：2.96 mm
FOV：102°
TV Distortion：’<-1 .35%
Relative Illumination (Sensor)：70%
IR Filter：650±10 nm

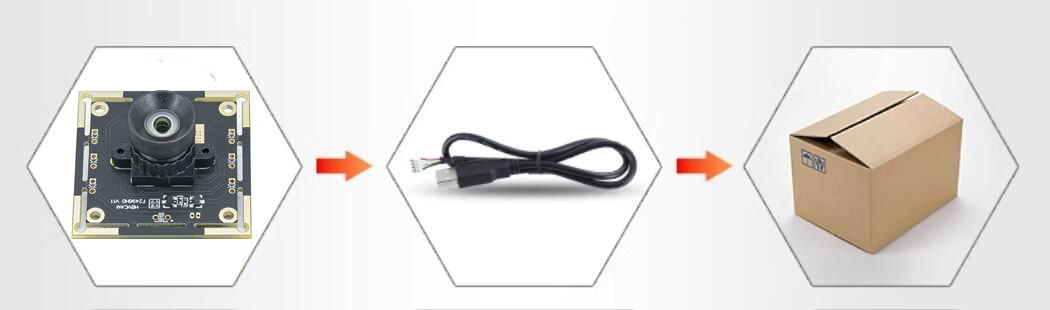

Module Package：Anti-electrostatic tray
Certifications：FCC/CE/ROSH
Module Mechanical Dimension：
Q1.Are you factory or trade company?

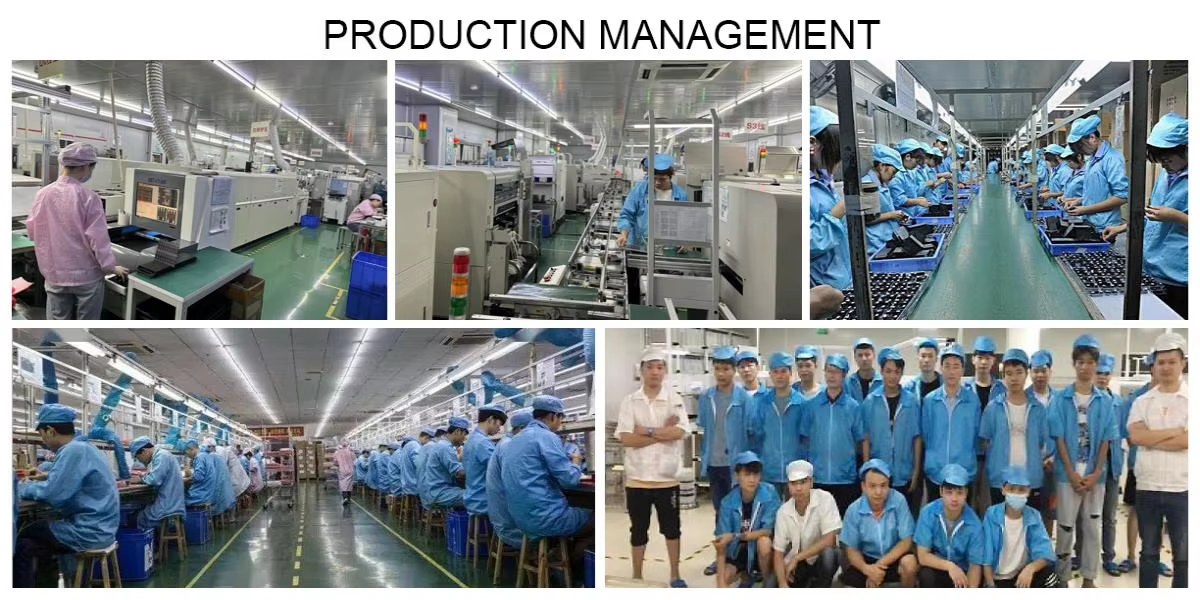

A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
