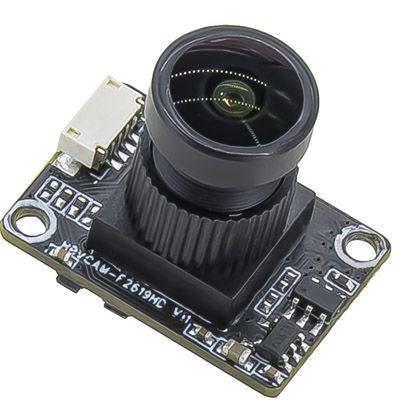

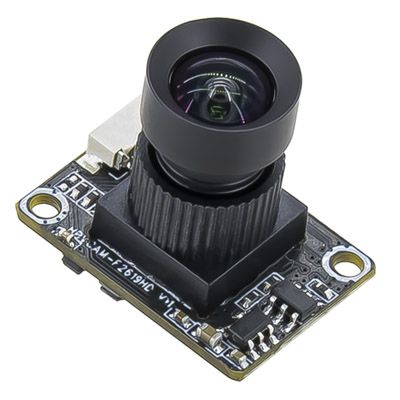

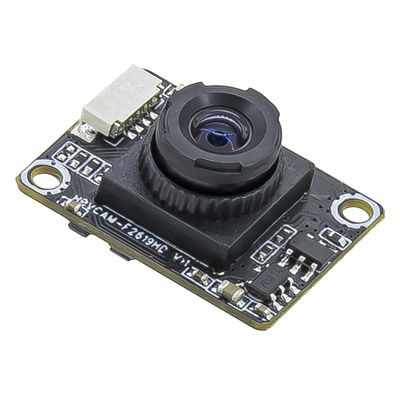

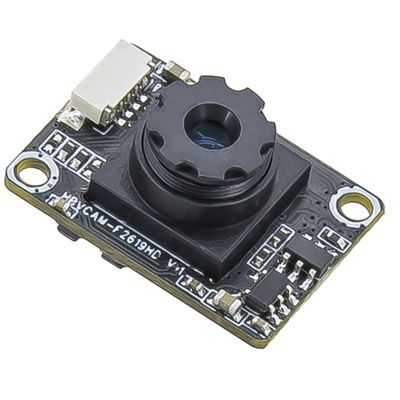

1. 2MP HD 1080P camera module
2. Product chip: OS02H10 (1/2.8")
3. Maximum resolution, format, and frame rate: 1920*1080 MJPG 60FPS
4. Built-in dual digital microphones
5. Maximum operating current: 100mA Power consumption: 500mW
5. Sample cable for testing: 4P-0.8MM-40CM
Key Specifications:

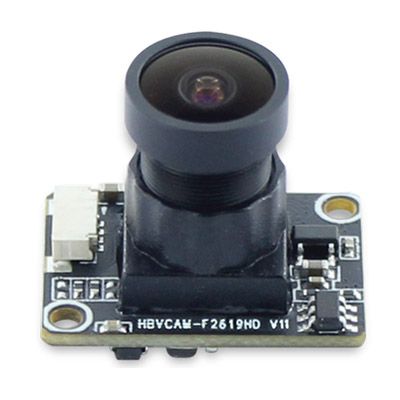

Module No. | HBVCAM-F2619HD V11 |
Module Size | 20x14x16.4±0.5MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 3CM-infinity（adjustable） |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 500mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | OS02H10 (1/2.8 ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1920*1080 |
Sensitivity | 5.8V /（lux-sec） |
Pixel Size | 3.0µm x 3.0µm |
Maximum Image Transfer Rate | MJPG 1920x1080 60FPS / YUY2 1920x1080 5FPS MJPG 1280x720 60FPS / YUY2 1280x720 10FPS MJPG 1024x768 60FPS / YUY2 1024x768 10FPS MJPG 848x480 60FPS / YUY2 848x480 15FPS MJPG 800x600 60FPS / YUY2 800x600 15FPS MJPG 640x480 60FPS / YUY2 640x480 30FPS MJPG 640x360 60FPS / YUY2 640x360 30FPS MJPG 352x288 60FPS / YUY2 352x288 30FPS MJPG 320x240 60FPS / YUY2 320x240 30FPS
|
S/N Ratio | 37.1dB |
Max Dynamic Range | 76.9 dB |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | NO |
Lens Construction | 2G+2P |
F/No | 2.5 |
EFL | 3.0mm |

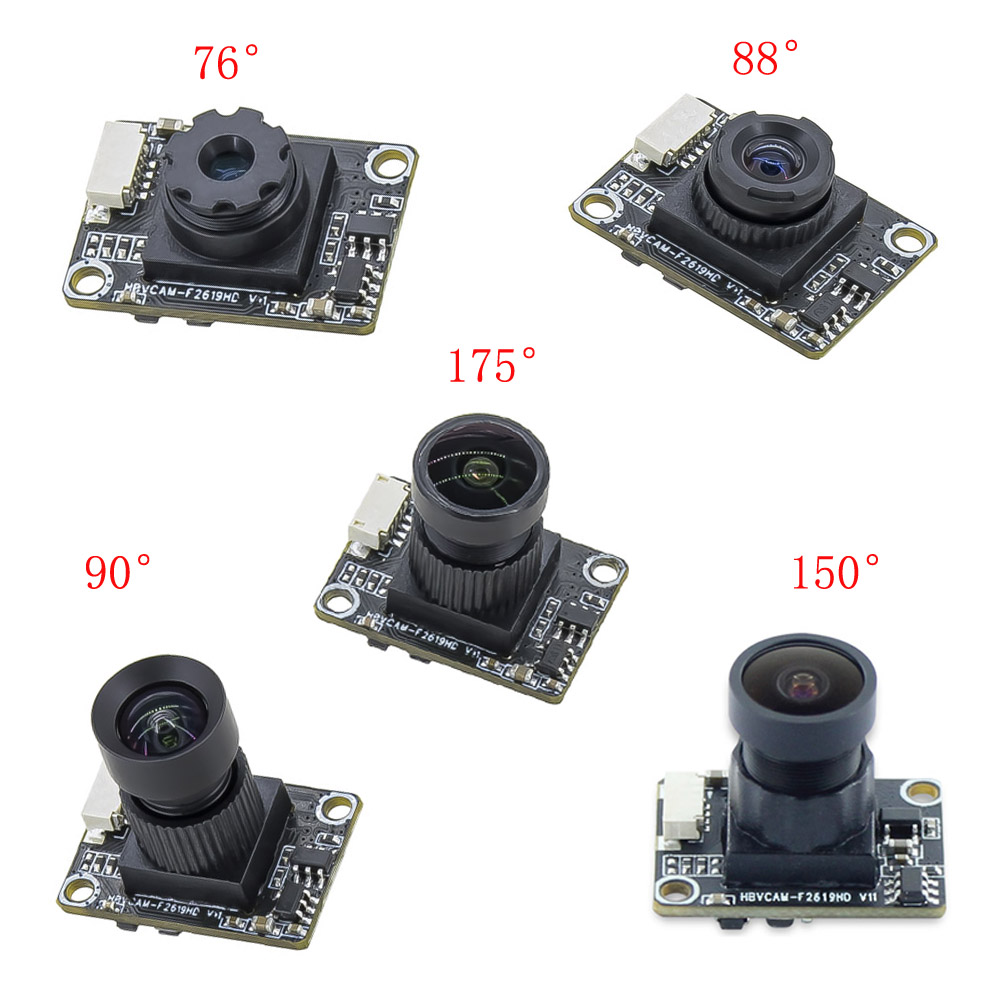

FOV | D=90° |
TV Distortion | <1% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |
Module Mechanical Dimension:
Q1.Are you factory or trade company?

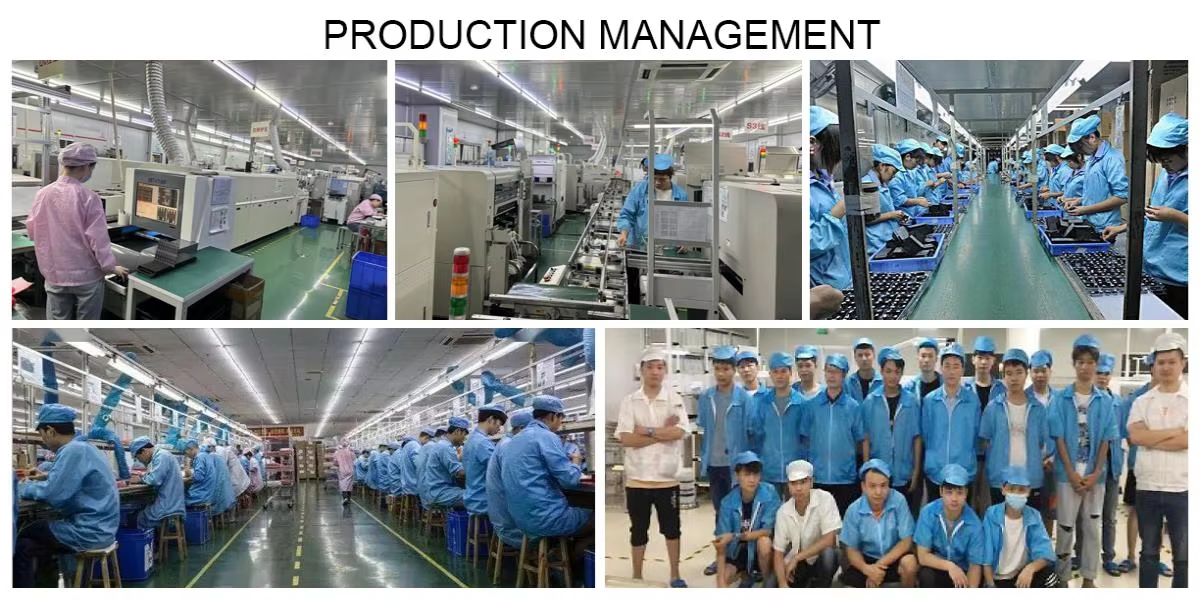

A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
