Home >> Products >> USB CAMERA MODULE >> 1MP HD USB Cameras
1.1MP HD 720P embedded camera module for industrial & industrial control equipment
2.Product Dimensions: 38*38*17±0.5 mm
3.Sensor: OV9732 (1/4'')
4.Max Resolution, Format, Frame Rate: 1280*720 MJPEG 30FPS
5.Max Field of View: 155°, with distortion
6.Equipped with dual digital microphones
7.Sample comes with a 4P-2.0MM-50CM test cabl

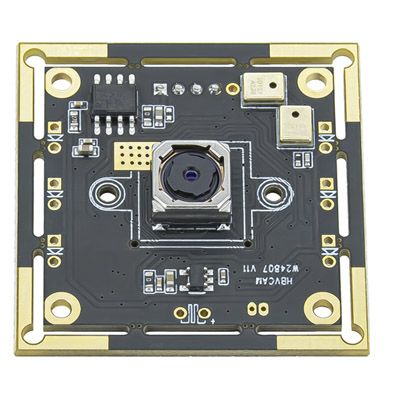

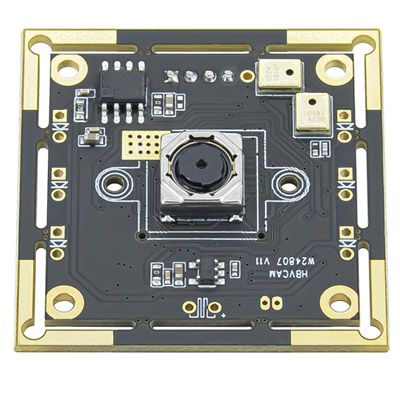

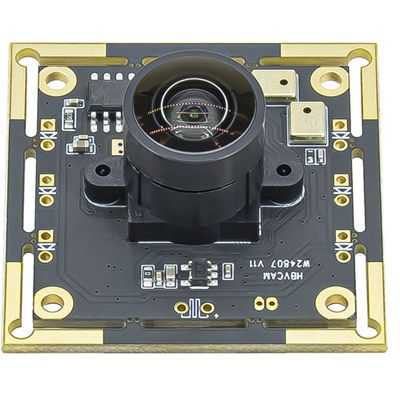

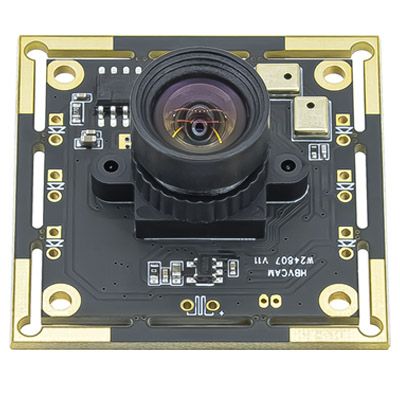

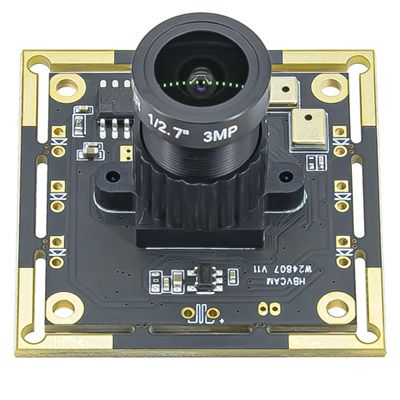

Wide Angle 155degree OV9732 1MP Camera Module
Key Specifications:
Module No. | HBVCAM-W24807 V11 |
Module Size | 38x38x17±0.5MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 500LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 300 mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | OV9732 (1/4 ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1280*720 |
Sensitivity | / |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | YUY2 1280x720 5FPS / MJPG 1280x720 30FPS YUY2 848x480 5FPS / MJPG 848x480 30FPS YUY2 800x600 5FPS / MJPG 800x600 30FPS YUY2 640x480 30FPS / MJPG 640x480 30FPS YUY2 640x360 30FPS / MJPG 640x360 30FPS YUY2 352x288 30FPS / MJPG 352x288 30FPS YUY2 320x240 30FPS / MJPG 320x240 30FPS YUY2 160x120 30FPS / MJPG 160x120 30FPS
|
S/N Ratio | / |
Max Dynamic Range | / |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | No |
Lens Construction | 6E |
F/No | 1.8 |
EFL | 1.3mm |
FOV | D=155° |
TV Distortion | ＜15% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |

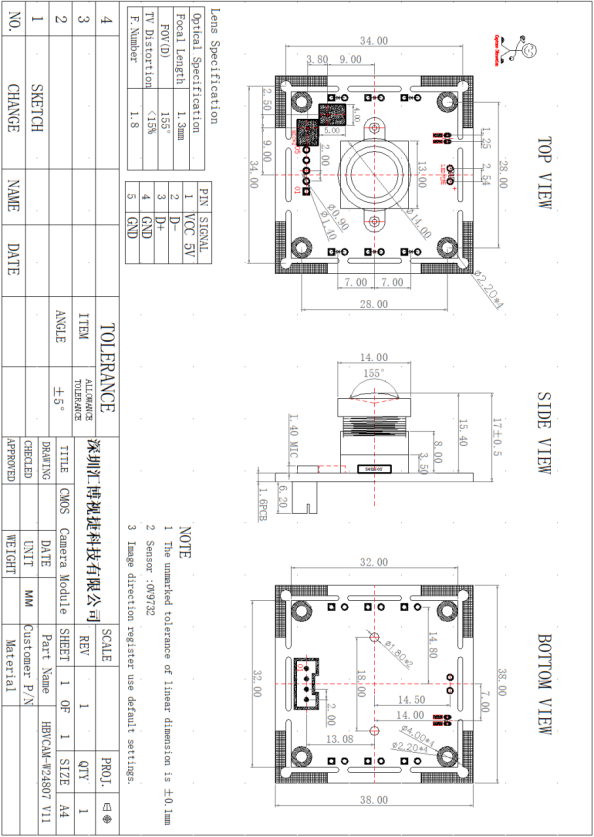

Module Mechanical Dimension:
