1. The Frame Rate can reach 120FPS
2. Support OTG and UVC protocol
3. It can add 850IR Led Light
4. It can be used with high speed scanner equipment
5. The structure is flexible, it is suitable for many devices.

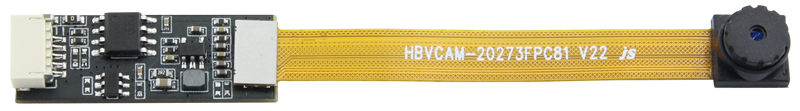

Module No. | HBVCAM-20273FPC81 V22 |
Module Size | 83.5mm × 10mm × 6.0mm±0.2MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 640 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | OV9281 (1/4” ) |
Seneor Package | CSP, Bare Die |
Maximum resolution | 1280*720 |
Sensitivity | 1300mV /（lux-sec） |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | MJPEG 640x480 120FPS / YUY2 640x480 30FPS MJPEG 1280x720 120FPS / |
S/N Ratio | 38 db |
Max Dynamic Range | 68 db |
Shutter type | |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | NO |
Lens Construction | 4P |
F/No | 2.8 |
EFL | 3.3 mm |
FOV | 60° |
TV Distortion | <-1% |
Relative Illumination (Sensor) | 70% |
IR Filter | 850±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |

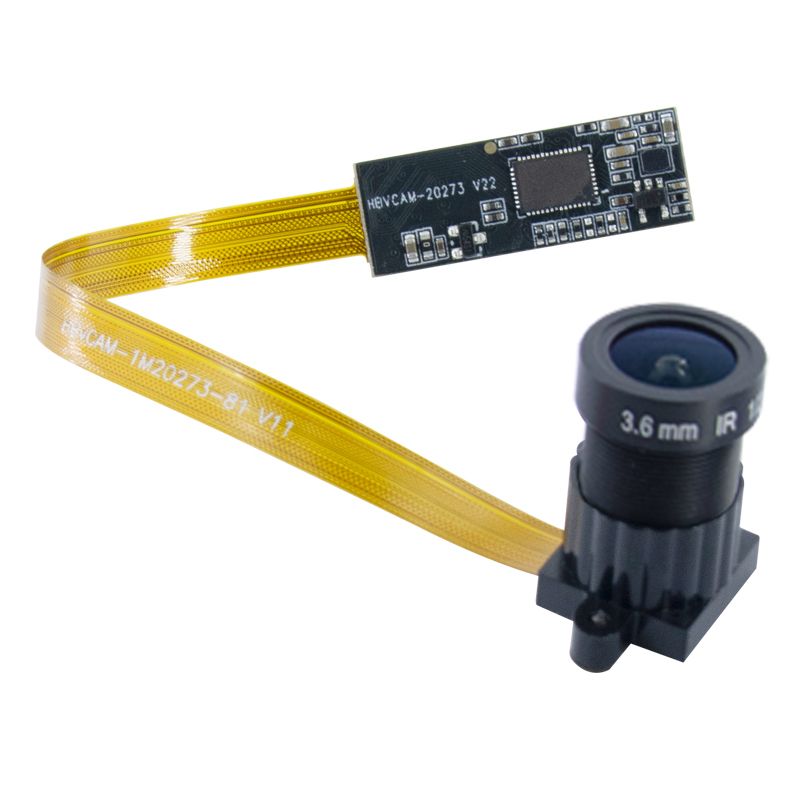

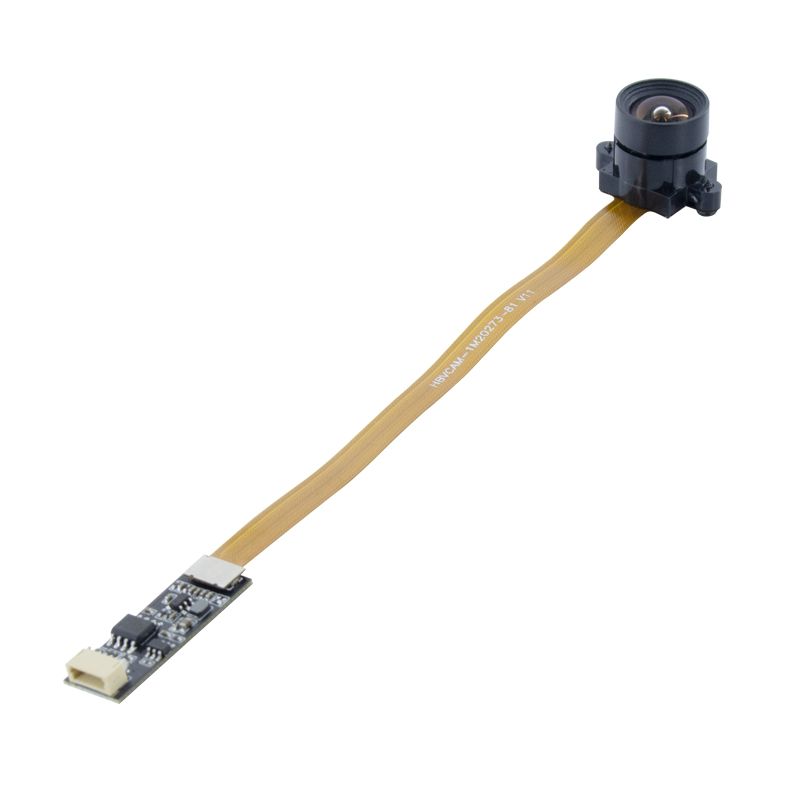

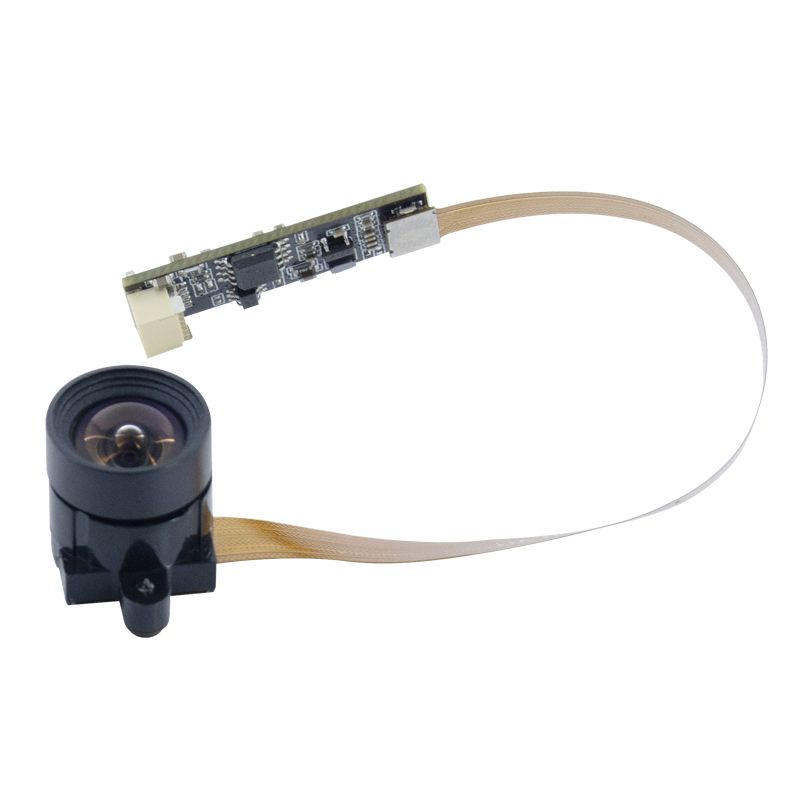

The HBVCAM OV9281 is a cutting-edge black and white USB global shutter camera module that delivers exceptional imaging performance. With its global exposure and high-speed scanning capabilities, this Monochrome Camera module is designed to meet the demanding requirements of various applications.
Experience the power of high-speed imaging with our black and white USB global shutter camera module. Equipped with advanced features and a monochrome sensor, it enables precise and accurate image capture even in fast-moving scenarios. Whether you're conducting research, developing computer vision systems, or implementing industrial inspection processes, this Monochrome Sensor Camera Module is your reliable solution.
The global exposure capability ensures synchronized exposure across the entire frame, eliminating motion artifacts and distortion commonly associated with rolling shutter cameras. This results in sharp, distortion-free images, making it ideal for applications that require precise image acquisition.
With its high-speed scanning capability, the HBVCAM OV9281 Monochrome Global Shutter Camera Module captures rapid sequences of frames, enabling you to analyze dynamic events and capture fast-moving objects with incredible detail. From motion analysis to sports analytics, this high-speed camera module opens up a world of possibilities.
The monochrome sensor of the HBVCAM OV9281 provides excellent sensitivity and noise performance, allowing for enhanced image quality and superior grayscale reproduction. It is specifically designed for applications that require black and white imaging, ensuring accurate representation of contrast and fine details.
Designed with ease of integration in mind, our black and white USB global shutter camera module features a hardware board docking structure that simplifies the integration process. The module can be easily connected to your system, enabling seamless operation and fast deployment.
Experience the benefits of our monochrome global shutter camera module today. Unlock the power of high-speed imaging, precise exposure control, and superior grayscale reproduction for your applications. Trust in HBVCAM 1-megapixel black and white USB global shutter camera module to deliver outstanding performance and reliability.
Q1.Are you a factory or trade company?
A1:Huiber is a factory and has our own production line with 10 levels of dust-free workshops and professionally trained production workers.
Q2.How long for the production time?
A2:Sample order is 4-5 days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, FedEx, and Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes, we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5 days. Bulk orders take 9-10 days.
Q6.What are the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years of warranty service and introduced a complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A: Yes, we can accept sample orders at first. Our MOQ for a sample is 5-10 pcs.
Experience the power of high-speed imaging and precise exposure control with HUIBER's Black and White USB Global Shutter Camera. Capture fast-moving objects with exceptional detail and enjoy distortion-free images. Trust in HUIBER's cutting-edge technology for your imaging needs today.
