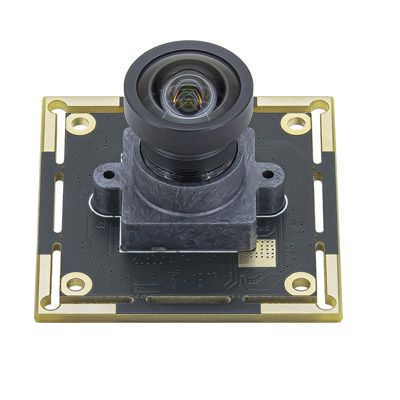

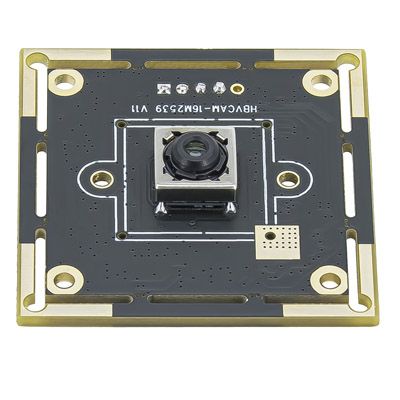

1. 16MP 4K USB Camera Module
2. Product size: 38 * 38 * 24.5 ± 0.2 MM
3. Product chip: IMX298 (1/2.8 '')
4. Maximum resolution, format, frame rate: 4656*3496 MJPG 15FPS 3840*2160 MJPG 30FPS（4K Resolution）
5. Maximum viewing angle: 105 °
6. Sample matching test line 4P-2.0MM-50CM
Key Specifications ：
Module No. | HBVCAM-16M2539 V11 |
Module Size | 38x38x24.5±0.5MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 950mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | IMX298 (1/2.8 ) |
Seneor Package | / |
Maximum resolution | 4656*3496 |
Sensitivity | / |
Pixel Size | 1.12*1.12µm |
Maximum Image Transfer Rate | MJPG 4656x3496 15FPS MJPG 3840x2160 30FPS MJPG 3264x2448 30FPS MJPG 2592x1944 30FPS MJPG 2048x1536 30FPS MJPG 1920x1080 30FPS MJPG 1600x1200 30FPS MJPG 1280x720 30FPS MJPG 1024x768 30FPS MJPG 800x600 30FPS MJPG 640x480 30FPS / YUY2 640x480 30FPS MJPG 320x240 30FPS / YUY2 320x240 30FPS
|
S/N Ratio | / |
Max Dynamic Range | / |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | NO |
Lens Construction | 5G+2P |
F/No | 2.8 |
EFL | 2.7mm |
FOV | D=100° |
TV Distortion | -1.5% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |
Module Mechanical Dimension：
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
