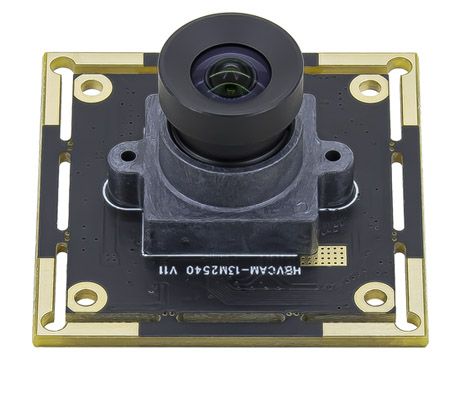

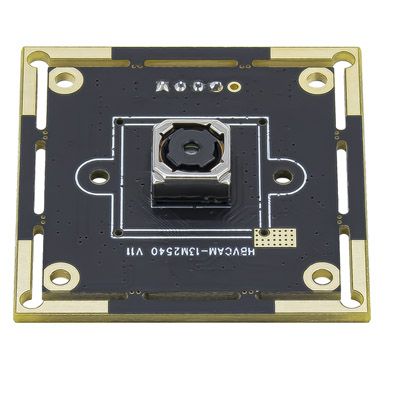

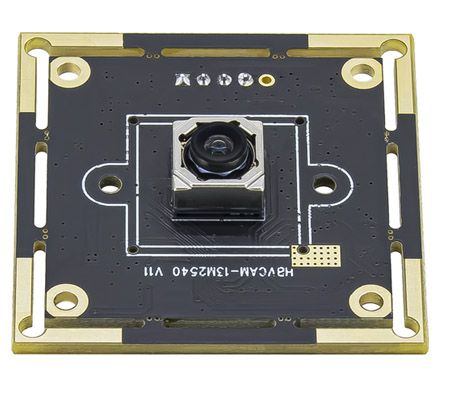

1. 13MP 4K USB Camera Module
2. Product chip: IMX258 (1/3.06 '')
3. Maximum resolution, format, frame rate:
4208*3120 MJPG 10FPS
3840 * 2160 MJPG 20FPS (4K resolution)
4. Maximum operating current value: 210mA Power consumption: 1050mW
5. Sample testing line 4P-2.0MM-50CM
6. Maximum operating current value: 160mA Power consumption: 800mW
7. ProductSize:38*38*7.3±0.3 MM
Key Specifications:
Module No. | HBVCAM-13M2540 V11 |
Module Size | 38x38x18.0±0.5MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 800 mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | IMX258 (1/3.06 ) |
Maximum resolution | 4160*3120 |
Pixel Size | 1.12*1.12 μm
|
Maximum Image Transfer Rate | MJPG 4208x3120 10FPS MJPG 4000x3000 15FPS MJPG 3840x2160 20FPS MJPG 2592x1944 20FPS MJPG 2048x1536 20FPS MJPG 1920x1080 60FPS MJPG 1600x1200 20FPS MJPG 1280x720 60FPS MJPG 800x600 60FPS MJPG 640x480 60FPS / YUY2 640x480 30FPS
|
S/N Ratio | / |
Max Dynamic Range | / |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | NO |
Lens Construction | 2G+2P |
F/No | 2.8 |
EFL | 2.74mm |
FOV | D=91° |
TV Distortion | ＜-2% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |

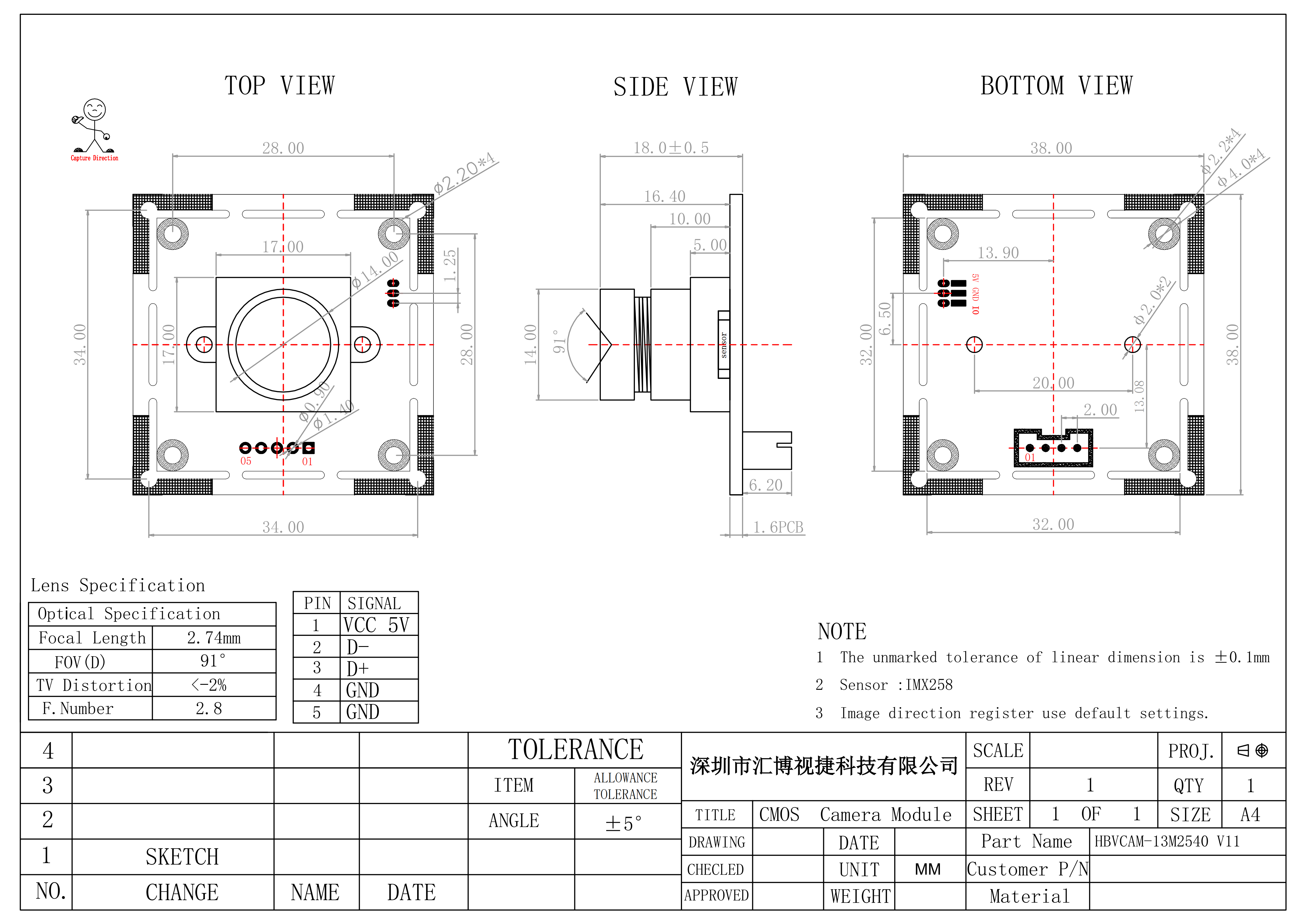

Module Mechanical Dimension:
Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers
Q2.How long for productions time?
A2:Sample order is 4-5days. Bulk orders take 9-10 days.
Q3.What shipping ways do you have?
A3:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q4.Could you offer OEM&ODM service?
A4:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q5.How long is the production cycle?
A5:Sample order is 4-5days. Bulk orders take 9-10 days.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
Q7.Do you guarantee the quality of products?
A7:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q8:Can I order samples?
A:Yes, we can accept sample order at first.Our MOQ for sample is 5-10pcs.
