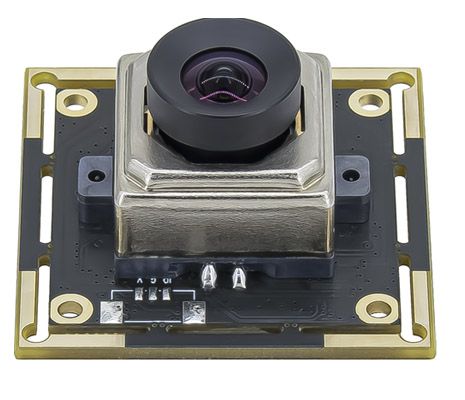

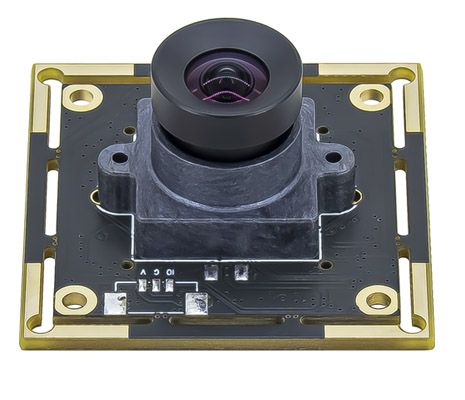

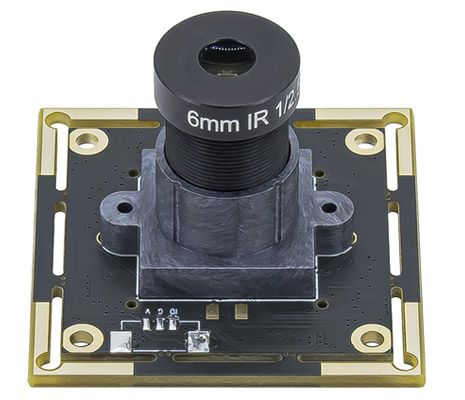

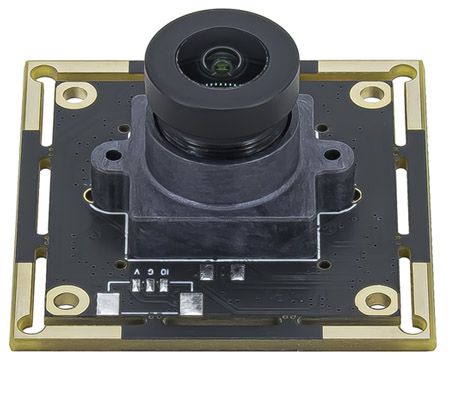

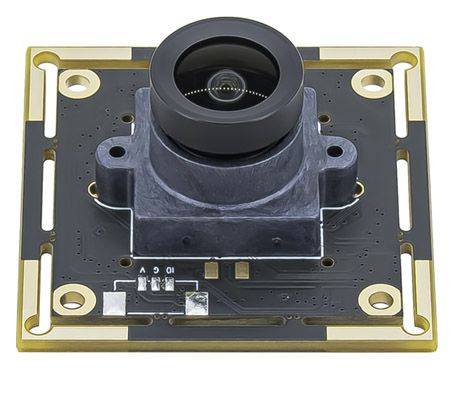

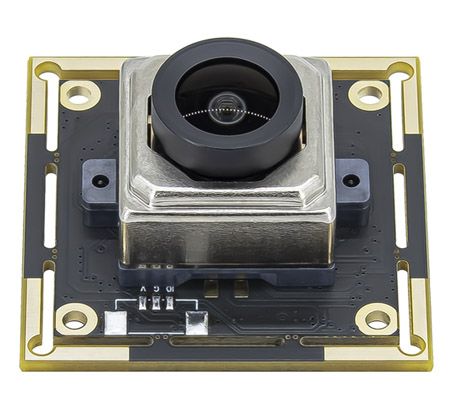

1、12MP USB Camera module
2、Product size：38*38* 17.2±0.5 MM
3、Product chip：IMX663(1/2.93'')
4、Maximum resolution, format, and frame rate ：4000*3000 MJPG 20FPS
3840*2160 MJPG 30FPS(4K resoluton)
5、Maximum viewing angle：125° low distoriton
6、Sample testing cable:4P-2.0MM-50CM
Key Specifications:
Module No. | HBVCAM-12M2520 V11 |
Module Size | 38x38x17.2±0.5MM |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 1050mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | IMX663 (1/2.93 ) |
Seneor Package | / |
Maximum resolution | 4000*3000 |
Sensitivity | / |
Pixel Size | 1.22*1.22µm |
Maximum Image Transfer Rate | MJPG 4000x3000 20FPS MJPG 3840x2160 30FPS MJPG 2592x1944 30FPS MJPG 2560x1440 30FPS MJPG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPG 1280x960 30FPS / YUY2 1280x960 6FPS MJPG 1280x720 30FPS / YUY2 1280x720 8FPS MJPG 800x600 30FPS / YUY2 800x600 8FPS MJPG 640x480 30FPS / YUY2 640x480 30FPS
|
S/N Ratio | / |
Max Dynamic Range | / |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | NO |
Lens Construction | 6E |
F/No | 2.0 |
EFL | 1.85mm |
FOV | D=125° |
TV Distortion | ＜5% |
Image Colror | Color image |
Certifications | FCC/CE/ROSH |
Module Mechanical Dimension:
