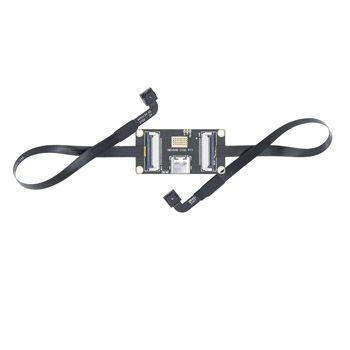

1.0.3MP Dual lens global shutter camera module
2. Main control board size: 40 * 20 MM
FPC: 150*16.25*3.6±0.2MM
3. Dual camera spacing baseline: variable baseline
4. Product chip: OV7251(1/7.5'')
5. Maximum resolution, format, frame rate: 1280*480 MJPG 120FPS
6:Maximum viewing angle: 60 °
7. Sample Cable: Type-C-50CM
Module No. | HBVCAM-2436 V11 |

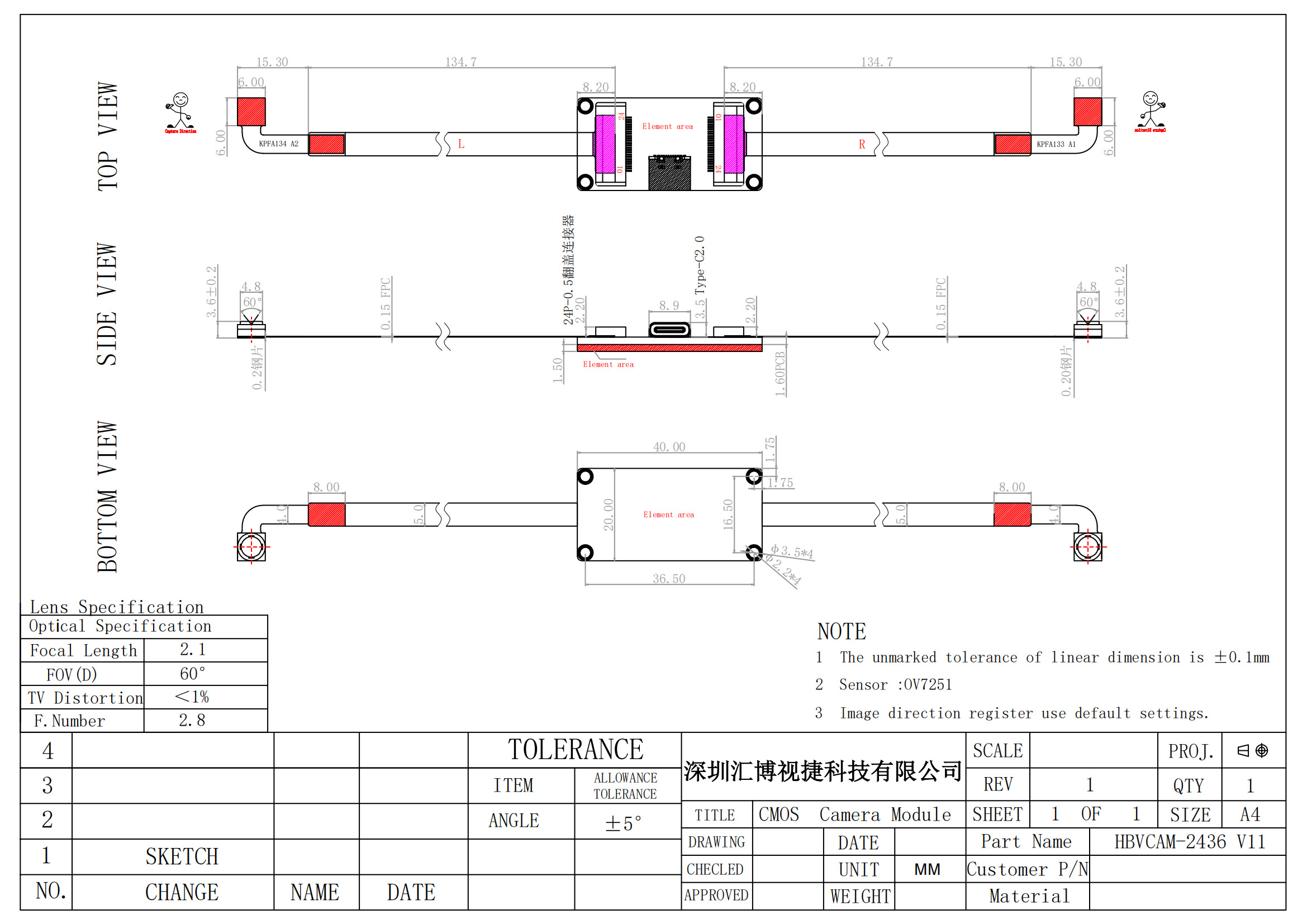

Module Size | Refer to the module mechanical dimension |
Temperature (Operation) | -20℃ to 70℃ |
Temperature (Stable Image) | 0℃ to 50℃ |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity（adjustable） |
Resolution | 300LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 800 mW |
Operating system request | Win XP/win 7-11、vista / android / mac /Linux with uvc |
Sensor | OV7251 (1/7.5) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1280*480 |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | MJPG 1280x480 120FPS / YUY2 1280x480 5FPS MJPG 640x480 120FPS / YUY2 640x480 5FPS MJPG 640x472 120FPS / YUY2 640x472 5FPS MJPG 640x240 120FPS / YUY2 640x240 5FPS MJPG 320x240 120FPS / YUY2 320x240 120FPS MJPG 640x232 120FPS / YUY2 640x232 120FPS
|
S/N Ratio | 39dB |
Max Dynamic Range | 69.6dB@ 8x gain |
Shutter type | Global shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPG |
Microphone | No |
Lens Construction | / |
F/No | 2.8 |
EFL | 2.1 |
FOV | D=60° |
TV Distortion | ＜1% |
Image Colror | Monochrome pictu |
Certifications | FCC/CE/ROSH |
